Kubota M4900, M5700 Tractor Pdf Repair and Service Manual

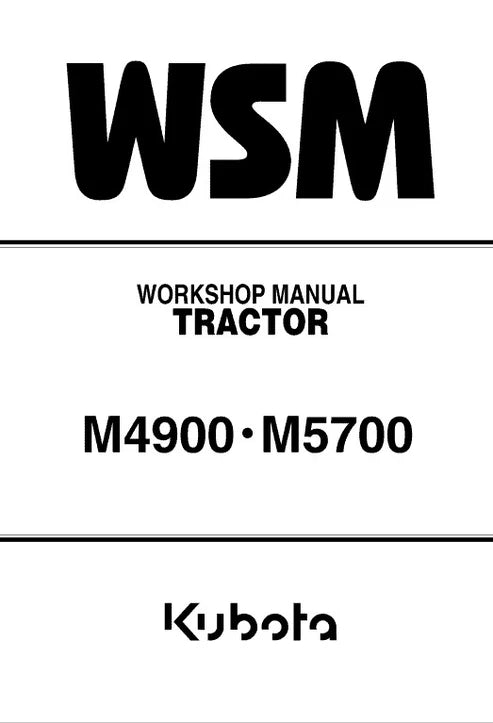

When your Kubota M4900 or M5700 needs more than routine maintenance, having the correct workshop information can make a repair much more straightforward. This service manual covers the major mechanical, hydraulic, electrical, and drivetrain systems, with specifications, servicing information, troubleshooting, adjustment procedures, and detailed illustrations for workshop use.
Manual Information
| Models | Kubota M4900, M5700 |
|---|---|
| Workshop Manual | 9Y011-12555 |
| Additional Coverage | M4900SU, M5700HD, M5700DT-N and M5700 Hydraulic Shuttle variants, where applicable |
| Language | English |
| Format | |
| Document Type | Workshop / Repair Service Manual |
Repair Information Inside
The manual is organized around the systems you actually work on when servicing an older M-Series tractor. It provides mechanism descriptions alongside servicing procedures, specifications, inspection points, and adjustment information.
- Engine: F2803 diesel engine service, inspection, adjustments, lubrication, cooling, fuel system, and engine-body procedures.
- Clutch: clutch construction, inspection, adjustment, removal, servicing, and reassembly information.
- Transmission: transmission components, gear operation, disassembly, inspection, adjustment, and assembly procedures.
- Rear and front axles: axle service, differential components, final drive, seals, bearings, and related adjustments.
- Brakes and steering: brake servicing and hydrostatic power-steering information.
- Hydraulic system: hydraulic components, pump-related service, control functions, troubleshooting, and specifications.
- Electrical system: electrical components, wiring information, testing, and servicing procedures.
- Cab and related systems: applicable cabin components and service information for equipped models.
Kubota M4900 & M5700 Specifications
| Model | M4900 | M5700 |
|---|---|---|
| Engine | Kubota F2803 diesel | Kubota F2803 diesel |
| Displacement | 2.746 L (167.6 cu. in.) | 2.746 L (167.6 cu. in.) |
| Gross Engine Power | 54 hp (40.3 kW) | 61.6 hp (46.0 kW) |
| Rated Engine Speed | 2600 rpm | 2800 rpm |
| PTO Horsepower | Approximately 45 hp | Approximately 52 hp |
| PTO | Independent, 540 rpm | Independent, 540 rpm |
| Steering | Hydrostatic power steering | Hydrostatic power steering |
Built for Practical Tractor Repairs
Whether you are chasing a hydraulic problem, servicing the clutch, rebuilding part of the transmission, checking an axle, working on the fuel system, or tracing an electrical fault, the manual keeps the relevant specifications and procedures close at hand. Torque values, servicing specifications, diagrams, and component illustrations are especially useful during disassembly and reassembly.
PDF Manual Features
- English-language workshop manual
- Searchable PDF format
- Detailed repair illustrations and diagrams
- Printable pages for workshop use
- Zoom in/out for component details
- Instant digital access after purchase
- Easy to save and reference when required
- Lifetime access to the purchased PDF
Frequently Asked Questions
What tractors are covered by this manual?
The main workshop manual covers the Kubota M4900 and M5700 tractor models, with supplemental information available for variants such as the M4900SU, M5700HD, M5700DT-N, and M5700 Hydraulic Shuttle.
Does the manual cover the Kubota M4900 engine?
Yes. Engine sections cover the F2803 diesel engine along with fuel, cooling, lubrication, inspection, adjustment, and servicing information.
Can I use this manual for transmission repairs?
Yes. Transmission servicing includes component information, inspection, adjustment, disassembly, and reassembly procedures for the covered configurations.
Does it include hydraulic and electrical information?
Yes. The workshop information includes dedicated hydraulic and electrical system sections, including servicing procedures and wiring information.
Is this manual suitable for M5700 variants?
Coverage varies by configuration. The main M4900/M5700 workshop information is supplemented by documentation for specific M5700 variants, including Hydraulic Shuttle and M5700DT-N versions.
