John Deere 950K Crawler Dozer PDF Technical Repair Service Manual – TM14259X19

Major crawler-dozer repairs are rarely limited to one component. A worn track assembly can lead to drive-system work, a transmission problem can involve hydraulic controls, and a blade or ripper repair may require access to the machine's hydraulic and structural systems. The John Deere 950K Crawler Dozer Technical Repair Service Manual TM14259X19 is a workshop-focused reference for carrying out those repairs with procedures specific to the applicable 950K configuration.

TM14259X19 is identified as the Repair Technical Manual for John Deere 950K crawler dozers in the applicable serial range. The documented coverage includes PINs 1T0950KP__C310401–C334108, 1T0950KS__C310401–C338999, 1T0950KL__C310401–C338999, and 1T0950KX__C310401–C338999. The English PDF edition is listed at 502 pages. The companion Operation and Test publication is TM14258X19, so TM14259X19 should be selected when the requirement is physical repair and component service rather than primarily diagnostic testing.

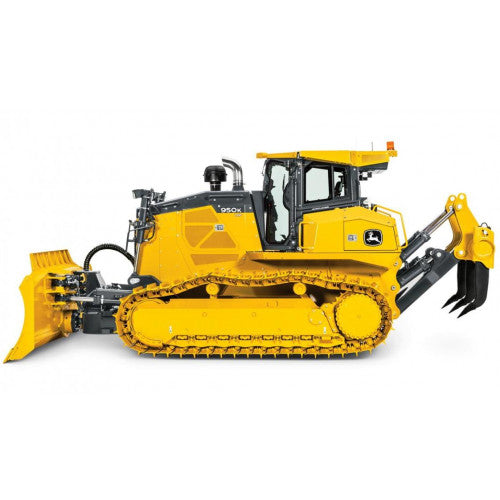

950K Machine Profile

Machine Detail	John Deere 950K
Machine Type	Crawler Dozer
Engine	John Deere PowerTech Plus 6090
Engine Displacement	9.0 L (549 cu. in.)
Net Rated Power	198 kW (265 hp) at 1,800 rpm
Net Peak Torque	1,245 Nm (913 lb-ft) at 1,300 rpm
Engine Aspiration	Turbocharged and air-to-air aftercooled
Transmission	Hydrostatic transmission
Hydraulic System	Load-sense electrohydraulic system with variable-displacement piston pump
Hydraulic Pump Displacement	100 cc
Hydraulic Relief Pressure	24,993 kPa (3,625 psi)
Maximum Hydraulic Flow	200 L/min (53 gpm) at unloaded high idle
Electrical System	24 V
Alternator	130 A
Fuel Capacity	505.5 L (133.5 gal.)
Hydraulic Reservoir	87 L (23 gal.)
Transmission Reservoir	149 L (39.44 gal.)
Standard Operating Weight	Configuration dependent; approximately 29,606–29,985 kg with listed standard configurations

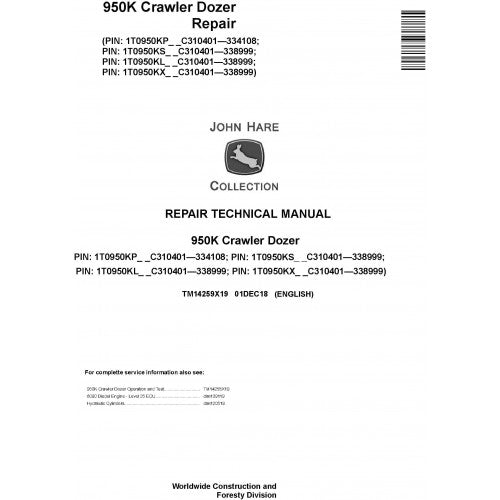

Manual Identification

Manual Information	Details
Manufacturer	John Deere
Model	950K Crawler Dozer
Publication Number	TM14259X19
Manual Type	Repair Technical Manual
Language	English
Format	PDF
Page Count	502 pages
Applicable PIN Coverage	1T0950KP__C310401–C334108; 1T0950KS__C310401–C338999; 1T0950KL__C310401–C338999; 1T0950KX__C310401–C338999
Companion Publication	TM14258X19 – Operation and Test Technical Manual

Repair Information Organized Around the Dozer

TM14259X19 is structured by machine system so a technician can move directly into the assembly requiring service. The manual includes general information and torque values before moving through the undercarriage, axles, transmission, engine, engine auxiliaries, blade, frame, hydraulic systems, ground-conditioning tools, and special service tools.

Section	Repair Coverage
General Information	Safety information and torque values
Tracks	Track-system repair and service
Axles and Suspension Systems	Drive axle housing, support, axle shafts, bearings, reduction gears, and hydraulic system
Transmission	Removal and installation, control linkage, input drive shafts, U-joints, and hydraulic system
Engine	Engine removal and installation
Engine Auxiliary System	Supporting engine systems and related components
Bulldozer	Blade, frames, and hydraulic system
Ground Conditioning Tool	Ripper removal and installation, blades, teeth, shanks, and hydraulic system
Dealer Fabricated Tools	Special service-tool information

Track and Undercarriage Repairs

The undercarriage of a 950K operates under high loads while pushing, ripping, and traveling across uneven ground. Track wear, damaged components, or drive-related problems therefore require procedures suited to the machine rather than generic dozer instructions.

The dedicated Track System section provides the repair reference for undercarriage work. This is useful when dealing with worn track components, damaged assemblies, abnormal track behavior, or repairs requiring removal and reinstallation of the track system.

For technicians working on the drive side of the undercarriage, the axle section continues into the drive axle housing and support, axle shafts, bearings, and reduction gears.

Drive Axle, Reduction Gear and Suspension Service

A crawler dozer's travel system transfers substantial torque through its final-drive and axle-related components. If abnormal noise, excessive wear, leakage, or travel performance problems lead to component removal, the axle and suspension section provides the appropriate repair information.

TM14259X19 includes dedicated groups for the drive axle housing and support and axle shaft, bearings, and reduction gears, allowing major drivetrain components to be addressed individually.

Hydrostatic Transmission Repair

The 950K uses a hydrostatic transmission, so transmission service involves hydraulic and mechanical elements rather than a conventional torque-converter transmission arrangement. The manual includes separate groups for transmission removal and installation, control linkage, input drive shafts and U-joints, and transmission hydraulic systems.

This becomes especially useful when the dozer develops travel problems, control-linkage issues, abnormal drivetrain behavior, or a transmission fault that requires physical component repair.

Because the transmission and hydraulic systems interact closely, the dedicated hydraulic-system information can help during component removal, inspection, and reassembly.

Engine Removal and Power Unit Service

The 950K is powered by a 9.0-liter John Deere PowerTech Plus 6090 producing 198 kW (265 hp) at 1,800 rpm. The engine section of TM14259X19 provides the repair reference for engine removal and installation.

This is particularly relevant during major engine work where access requires separation from surrounding machine systems. The engine auxiliary information complements the main engine procedure by addressing supporting components and systems encountered during service.

Electrohydraulic System and Dozer Hydraulics

The 950K uses a load-sense electrohydraulic system with a variable-displacement piston pump. John Deere publishes a 100 cc pump displacement, 24,993 kPa (3,625 psi) system relief pressure, and up to 200 L/min (53 gpm) of hydraulic flow at unloaded high idle.

The repair manual contains dedicated hydraulic-system groups within the relevant axle, transmission, and bulldozer sections. This makes it useful when physical hydraulic-component repair is required after the source of a problem has been identified.

Blade and Frame Repair

The blade is where the 950K converts engine and hydraulic power into pushing force. Continuous impact and high loading can place significant stress on the blade structure, frame, mounting points, and hydraulic components.

The Bulldozer section includes dedicated groups for the blade, frames, and hydraulic system. This provides model-specific information for service work involving the dozer blade assembly and associated structures.

Ripper and Ground-Conditioning Tool Service

For machines equipped with a rear ripper, TM14259X19 extends beyond the basic dozer blade. The Ground Conditioning Tool section includes information for ripper removal and installation, blades, teeth and shanks, and the associated hydraulic system.

This is useful when replacing worn ripper teeth or shanks, removing the ripper assembly, servicing its mounting arrangement, or repairing the hydraulic functions that control the attachment.

Repair Situations Where TM14259X19 Helps

• Track components require major service: Use the dedicated track-system repair information rather than generic crawler-dozer procedures.
• Final-drive or reduction components are worn: The axle and reduction-gear groups provide the appropriate component-level reference.
• The hydrostatic transmission needs removal: Transmission removal and installation procedures are provided within the repair manual.
• Transmission control linkage requires service: The dedicated controls-linkage group provides the applicable repair information.
• Engine removal is required: The engine section provides removal and installation procedures for the 9.0-liter power unit.
• Blade hydraulic components require repair: The bulldozer hydraulic-system section provides the relevant technical reference.
• Blade or frame components are damaged: Dedicated blade and frame groups address the bulldozer assembly.
• Ripper components need replacement: The ground-conditioning-tool section covers ripper removal and installation plus blades, teeth, and shanks.
• Hydraulic component repair is required: Relevant hydraulic-system groups are provided within the applicable machine sections.
• Correct torque is needed during assembly: General information includes torque values for service work.

Why the Serial Range Matters

The 950K was produced in multiple configurations and publication generations. TM14259X19 is associated with the earlier applicable 950K PIN ranges beginning at C310401. Later 950K production uses different technical-publication numbers, so the publication number should be checked against the machine PIN before beginning repair work.

For the C310401-era machines, the documented repair publication is TM14259X19, paired with TM14258X19 for operation and testing. Later machines use different publications such as TM14360X19/TM14359X19, making correct publication selection important.

Repair Manual vs. Operation and Test Manual

Publication	Main Purpose
TM14259X19	Physical repair, component removal, installation, disassembly, assembly, torque values, and service procedures
TM14258X19	Diagnostics, operational checkout, system theory, testing, adjustments, and fault identification

If the problem has already been diagnosed and the next step is to remove or repair a component, TM14259X19 is the appropriate technical reference. If the fault still needs to be identified through operational checks and diagnostic tests, the companion operation-and-test publication is more appropriate.

Digital PDF Features

• Language: English
• Format: PDF
• Page count: 502 pages
• Searchable technical content
• Organized repair sections and groups
• Detailed component service information
• Torque-value reference
• Technical illustrations and repair procedures
• Zoom in/out for diagrams and component details
• Printable pages for workshop reference
• Convenient digital access from compatible computers, tablets, and mobile devices

Frequently Asked Questions

What is John Deere TM14259X19?

TM14259X19 is the Repair Technical Manual for applicable John Deere 950K Crawler Dozers. It focuses on physical repair and service procedures rather than primarily on machine diagnostics.

Which 950K serial numbers does TM14259X19 cover?

The documented coverage includes PIN 1T0950KP__C310401–C334108, 1T0950KS__C310401–C338999, 1T0950KL__C310401–C338999, and 1T0950KX__C310401–C338999.

How many pages are in TM14259X19?

The identified English PDF edition contains 502 pages.

Does TM14259X19 cover the hydrostatic transmission?

Yes. The transmission section includes removal and installation, control linkage, input drive shafts and U-joints, and transmission hydraulic-system information.

Does the manual include track repair information?

Yes. Section 01 contains the Track System repair information for the 950K.

Does the 950K repair manual include engine removal?

Yes. The engine section includes an engine removal and installation group.

Does TM14259X19 cover blade hydraulics?

Yes. The Bulldozer section includes dedicated groups for the blade, frames, and hydraulic system.

Does the manual cover a rear ripper?

Yes, when equipped. The Ground Conditioning Tool section includes ripper removal and installation plus blades, teeth, shanks, and hydraulic-system information.

Is TM14259X19 the diagnostic manual?

No. TM14259X19 is the Repair Technical Manual. The companion TM14258X19 is the Operation and Test manual for diagnostics, operational checkout, testing, and adjustments.

Is this manual suitable for every John Deere 950K?

No. The 950K has multiple production ranges with different technical publications. The machine PIN should be checked against the coverage listed for TM14259X19 before using the manual.
