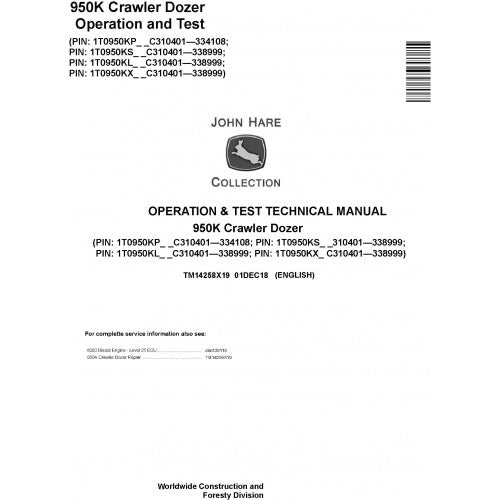

John Deere 950K Crawler Dozer Pdf Diagnostic, Operation and Tests Service Manual TM14258X19
John Deere 950K Crawler Dozer Pdf Diagnostic, Operation and Tests Service Manual TM14258X19
⭐⭐⭐⭐⭐ 50+ Reviews
Couldn't load pickup availability
John Deere 950K Crawler Dozer PDF Diagnostic, Operation and Tests Service Manual TM14258X19
If you own or service a John Deere 950K Crawler Dozer and need to find the reason behind a fault, warning, poor machine response, or abnormal system operation, TM14258X19 gives you the diagnostic and testing information specific to this machine. Instead of relying on a generic dozer manual, you can use the publication to check the 950K's actual electronic, hydraulic, hydrostatic, engine and powertrain systems.
This is the Diagnostic, Operation and Test Technical Manual, so it is particularly useful when you know something is wrong but need to determine where the problem is before purchasing or replacing components. It is also the companion diagnostic publication to the TM14259X19 Repair Technical Manual.
Manual Specification
| Item | Details |
|---|---|
| Brand | John Deere |
| Model | 950K Crawler Dozer |
| Publication Number | TM14258X19 |
| Manual Type | Diagnostic, Operation and Test Technical Manual |
| Language | English |
| Format | |
| Page Count | 1,168 pages |
| Related Repair Manual | TM14259X19 |
950K Serial Number Coverage
| PIN | Coverage |
|---|---|
| 1T0950KP__ | C310401–C334108 |
| 1T0950KS__ | C310401–C338999 |
| 1T0950KL__ | C310401–C338999 |
| 1T0950KX__ | C310401–C338999 |
Check your complete PIN before ordering. John Deere used different publications for later 950K production ranges, so matching the serial number is the safest way to make sure this TM14258X19 manual belongs to your machine.
John Deere 950K Machine Information
| Specification | 950K |
|---|---|
| Engine | John Deere PowerTech Plus 6090 |
| Displacement | 9.0 L (549 cu. in.) |
| Net Rated Power | 265 hp (198 kW) @ 1,800 rpm |
| Peak Torque | 1,245 Nm (913 lb-ft) @ 1,300 rpm |
| Transmission | Hydrostatic |
| Maximum Forward Speed | 11 km/h (6.8 mph) |
| Maximum Reverse Speed | 11 km/h (6.8 mph) |
| Hydraulic Pump | Variable-displacement piston pump |
| Maximum Hydraulic Flow | 200 L/min (53 gpm) |
| Hydraulic Relief Pressure | 24,993 kPa (3,625 psi) |
| Fuel Capacity | 505.5 L (133.5 gal.) |
| Hydraulic Capacity | 87 L (23 gal.) |
| Operating Weight | 29,606 kg (65,300 lb.) in the referenced configuration |
| Blade Capacity | Up to 7.2 m³ (9.4 yd³), configuration dependent |
What You Get in TM14258X19
The manual is centered on the information you need when diagnosing the machine rather than rebuilding a component. It includes:
- Diagnostic Trouble Codes: ECU, DMH, SSM, TCU, VCU and HVC diagnostic information.
- Operational Checkout: procedures for checking 950K functions and confirming symptoms.
- Engine: system operation, diagnostics, adjustments and tests.
- Electrical: system diagrams, diagnostic information and electrical testing.
- Powertrain: operating information and diagnostic procedures.
- Hydraulic: hydraulic system diagrams, diagnostics and testing.
- Hydrostatic: hydrostatic system diagnosis and tests.
- HVAC: heating and air-conditioning diagnostic information.
Why 950K Owners Look for This Manual
A diagnostic code by itself does not always tell you which component needs replacing. The 950K uses electronic controls together with a high-flow load-sensing hydraulic system and hydrostatic drive, so the same operating symptom can have more than one possible cause. TM14258X19 lets you move from the machine's symptom or diagnostic code to the appropriate operational check and system test.
For someone searching specifically for a John Deere 950K diagnostic manual PDF, 950K hydraulic test manual, 950K hydrostatic troubleshooting manual, or 950K DTC diagnostic manual, this publication provides those areas in one model-specific reference.
PDF Features
- English PDF format
- 1,168-page identified edition
- Searchable digital reference
- Printable pages
- Zoomable technical diagrams
- 950K-specific diagnostic procedures
- Useful for workshop and field troubleshooting
Frequently Asked Questions
What is John Deere TM14258X19?
TM14258X19 is the Diagnostic, Operation and Test Technical Manual for the applicable John Deere 950K Crawler Dozer serial ranges.
How many pages does TM14258X19 contain?
The identified edition contains 1,168 pages.
Does this manual include 950K fault codes?
Yes. Diagnostic information includes controller-specific DTC sections for the applicable 950K electronic systems.
Does it include hydraulic and hydrostatic testing?
Yes. Both hydraulic and hydrostatic system diagnostics and test procedures are included.
Is this the 950K repair manual?
No. TM14258X19 is the diagnostic, operation and test publication. The related TM14259X19 is the repair technical manual for component repair procedures.
