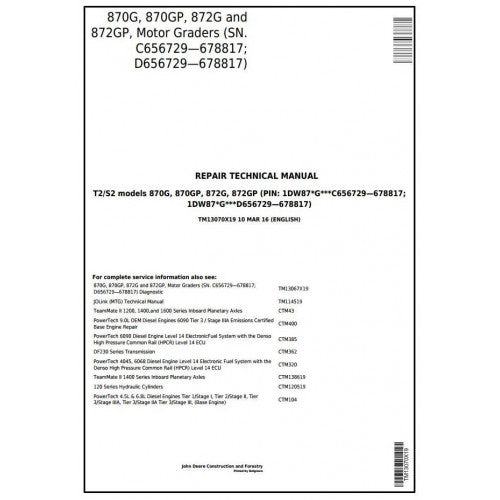

John Deere 870G, 870GP, 872G, 872GP Motor Grader Pdf Technical Repair Service Manual TM13070X19
John Deere 870G, 870GP, 872G, 872GP Motor Grader Pdf Technical Repair Service Manual TM13070X19
⭐⭐⭐⭐⭐ 50+ Reviews
Couldn't load pickup availability
John Deere 870G, 870GP, 872G & 872GP Motor Grader PDF Repair Manual TM13070X19
A motor grader repair rarely stays confined to one component. A transmission job can involve the driveline, an articulation repair can require access to hydraulic cylinders and frame components, and a 6WD problem on an 872G can lead directly into the pump, charge circuit, engagement manifold and front drive motor. John Deere TM13070X19 is designed around these machine-specific repair situations for the 870G, 870GP, 872G and 872GP motor graders.
Rather than using a generic construction-equipment repair guide, this technical manual gives you model- and PIN-specific service information for the assemblies that make these G-Series graders different: the 9.0 L PowerTech engine, DF230 transmission, tandem drive system, 6WD system, steering, braking, main hydraulics, circle gearbox, moldboard controls, articulation and ground-conditioning equipment.
Machine Data at a Glance
| Specification | 870G / 870GP | 872G / 872GP |
|---|---|---|
| Machine Type | 4WD Motor Grader | 6WD Motor Grader |
| Engine Family | John Deere PowerTech 9.0 L family | John Deere PowerTech 9.0 L family |
| Cylinders | 6-cylinder | 6-cylinder |
| Displacement | 9.0 L / 548 cu. in. | 9.0 L / 548 cu. in. |
| Maximum Published Net Power | 209 kW / 280 hp | 224 kW / 300 hp |
| Net Peak Torque | 1,430 Nm / 1,055 lb-ft | 1,472 Nm / 1,086 lb-ft |
| Transmission | John Deere PowerShift Plus, 8 forward / 8 reverse | John Deere PowerShift Plus, 8 forward / 8 reverse |
| Drive Arrangement | Rear tandem drive with heavy-duty front axle | Rear tandem drive plus hydraulic front-wheel drive |
| Front Axle Oscillation | 32° total | 32° total |
| Maximum Travel Speed | Approx. 45 km/h / 28 mph | Configuration dependent |
| Typical Application | Road construction, finish grading, maintenance grading | Heavy grading, traction-demanding applications, road construction |
Published power figures vary with engine emissions configuration and gear. Always identify the exact machine configuration and PIN before using specifications for service work.
Why the 870G and 872G Should Not Be Treated as the Same Grader
The most important technical difference in this model group is the drive configuration. The 870G and 870GP are 4WD graders, while the 872G and 872GP use a 6WD arrangement. That difference changes the service requirements around the front axle and adds a dedicated hydraulic drive system to the 872G family.
For an 872G/872GP repair, TM13070X19 provides information for the 6WD pump, charge pump, engagement manifold, hydraulic motor and related front-drive components. For an 870G/870GP, the relevant repair path centers on the conventional powered-wheel, axle, tandem and driveline assemblies.
This makes the manual particularly useful when a technician needs to determine whether a problem is mechanical, hydraulic or related to the configuration-specific drive system.
PIN Coverage — Check This Before Ordering
| Model | PIN Coverage |
|---|---|
| 870G | 1DW870G***C656729–678817 1DW870G***D656729–678817 |
| 870GP | 1DW870G***C656729–678817 1DW870G***D656729–678817 |
| 872G | 1DW872G***C656729–678817 1DW872G***D656729–678817 |
| 872GP | 1DW872G***C656729–678817 1DW872G***D656729–678817 |
Do not choose this manual from the model name alone. John Deere produced later technical publications for subsequent serial ranges, so the complete PIN is the best way to determine whether TM13070X19 is the correct repair publication for your grader.
What You Can Repair With TM13070X19
| Machine Area | Specific Repair Information |
|---|---|
| Powertrain | DF230 transmission removal and installation, transmission hydraulic system and charge pump |
| Front Axle | Non-powered and powered wheel axles, hubs, spindles, bearings and reduction components |
| Tandem Drive | Input drive shafts, U-joints, tandem assemblies, bearings, chains and related drive components |
| 6WD | 6WD pump, charge pump, engagement manifold, hydraulic motor and front-wheel-drive components |
| Engine | Engine removal and installation for applicable 6090HDW configurations |
| Cooling & Fuel | Radiator, fan, oil coolers, fuel cooler, charge-air cooler and fuel-system components |
| Steering | Power steering, hydraulic steering system, steering cylinders, wheel-lean components and secondary steering |
| Brakes | Service-brake active elements, hydraulic system, bleeding and accumulator procedures |
| Park Brake | Park-brake component service |
| Hydraulics | Main hydraulic pump, manifold, soft-start valve, fan pump, fan motor and hydraulic cleanup procedures |
| Grader Controls | Blade lift, blade pitch, circle side shift, articulation, wheel lean and circle rotation hydraulics |
| Circle Drive | Circle gearbox, circle adjustment, circle motor and associated components |
| Frame & Chassis | Frame separation, articulation bearing and structural repair procedures |
| Operator Station | Cab, seat, steering console, pedals, armrests, heating and air-conditioning |
| Ground Conditioning | Scarifier/ripper frame and related components |
Grading System Information for Real Repair Work
For a motor grader, the moldboard and circle assembly are working tools, not simply body components. A fault in one hydraulic function can affect the way the blade responds during road formation or finish grading.
TM13070X19 provides repair information for the draft frame, circle frame, lift arms, saddle, blade-pitch system, circle side-shift components, circle gearbox and grader hydraulic valve sections. The hydraulic coverage extends to individual valve sections associated with functions such as blade lift, blade pitch, circle rotation, articulation and wheel lean.
If a circle gearbox requires removal, for example, the manual provides the component-specific repair path rather than leaving the technician with only a general hydraulic troubleshooting procedure. The same applies when a blade-lift cylinder, circle motor or grader-control valve requires service.
9.0 L Engine Service Coverage
The 870G/GP and 872G/GP use the John Deere 9.0 L six-cylinder PowerTech engine family. Depending on emissions configuration, John Deere lists PowerTech PSS, PowerTech Plus and PowerTech versions for these grader families.
TM13070X19 identifies engine removal and installation procedures for the applicable 6090HDW01 and 6090HDW04 configurations. The surrounding auxiliary systems are also addressed, which is important because major engine work frequently requires removal of cooling, charge-air and fuel-system components.
- Radiator removal and installation
- Fan and fan-related component service
- Hydraulic and differential oil cooler service
- Transmission oil cooler service
- Fuel cooler service
- Charge-air cooler removal and installation
- Fuel tank removal
- External fuel-system components
Transmission and Driveline Repair
The DF230 transmission is one of the major repair areas covered by this publication. The transmission section includes removal and installation as well as hydraulic-system information, including the charge-pump area.
Behind the transmission, the manual continues into the drive system with procedures for input shafts, U-joints, tandem assemblies, bearings, reduction components and drive chains. This is useful when a noise, vibration, loss of drive or component failure cannot be isolated to the transmission itself.
6WD-Specific Service for 872G and 872GP
When the problem is on an 872G or 872GP, the 6WD section becomes particularly important. The front drive system introduces hydraulic components that do not exist in the same form on the 4WD 870G/870GP.
Covered areas include:
- 6WD hydraulic pump
- 6WD charge pump
- 6WD engagement manifold
- 6WD hydraulic motor
- Powered front-wheel axle components
- Planetary drive components
- Planetary brake components
- Front-wheel hub and bearing assemblies
This configuration-specific information can be valuable when a grader has reduced front-wheel assistance, requires a 6WD motor replacement, develops a hydraulic leak in the engagement circuit, or needs front-drive components dismantled for inspection.
Hydraulic System and Component-Failure Cleanup
Hydraulic contamination can turn one failed component into a much larger repair. TM13070X19 includes procedures for the main hydraulic system as well as cleanup procedures associated with hydraulic or hydrostatic component failure.
The manual covers the main hydraulic pump, hydraulic manifold, soft-start valve, fan pump, fan motor and fan valve. The information is therefore useful for both component replacement and the cleanup work that follows a hydraulic-system failure.
Steering, Articulation and Brake Systems
The articulated frame and steerable front axle make the 870G/872G platform different from many conventional wheeled machines. TM13070X19 provides service procedures for the steering system, including the steering valve, steering cylinders, wheel-lean cylinder and secondary-steering components where equipped.
The chassis section also addresses frame-related service, articulation-bearing work and structural procedures. Brake information covers the service-brake system, brake valve, hydraulic circuit, bleeding and accumulator, with separate information for the park brake.
Manual Specifications
| Manual Information | Details |
|---|---|
| Publication Number | TM13070X19 |
| Document Type | Repair Technical Manual |
| Machine Family | John Deere G-Series Motor Graders |
| Models | 870G, 870GP, 872G, 872GP |
| PIN Range | C656729–678817 and D656729–678817, according to model/PIN prefix |
| Language | English |
| Format | |
| Primary Purpose | Component repair, removal, installation, disassembly, inspection and assembly |
| Searchable | Yes, for searchable digital PDF editions |
| Printable | Yes |
| Technical Illustrations | Included throughout applicable repair sections |
| Page Count | Digital reproductions vary; no single page count is claimed here |
| PDF Size | Varies by digital reproduction and compression |
Why no fixed page count or file size? Digital copies of TM13070X19 currently appear with materially different pagination. Reporting one number as though it were an OEM specification could mislead customers. The publication number, model coverage and PIN range are the stronger identification criteria.
Useful Information for Workshop Technicians
| Repair Situation | Relevant Manual Area |
|---|---|
| Transmission must be removed | DF230 transmission removal and installation |
| Front drive is not functioning on an 872G | 6WD pump, charge circuit, engagement manifold and hydraulic motor |
| Circle movement requires repair | Grading device, circle gearbox and hydraulic system |
| Blade function is weak or requires component replacement | Grader hydraulic valve sections and cylinder procedures |
| Hydraulic component has failed internally | Main hydraulic system and component-failure cleanup |
| Front axle requires rebuilding | Powered wheel axle, hub, bearings, reduction gears and related sections |
| Articulation area needs major service | Frame, chassis and articulation procedures |
| Engine must be removed | 6090HDW engine removal and installation |
Digital PDF Features
- English-language technical repair information
- PDF format for convenient workshop reference
- Searchable text in compatible digital editions
- Printable pages for service-area use
- Zoom capability for technical illustrations and component details
- Organized technical sections for faster navigation
- Model-specific procedures instead of generic motor-grader instructions
Frequently Asked Questions
Which John Deere graders use TM13070X19?
This publication covers the John Deere 870G, 870GP, 872G and 872GP motor graders in the specified C/D 656729–678817 PIN range.
Is TM13070X19 a repair manual or an operation manual?
TM13070X19 is a Repair Technical Manual. It is intended for component removal, installation, disassembly, inspection, assembly and repair rather than normal operator instructions.
What is the difference between the 870G and 872G?
The 870G/870GP are 4WD motor graders, while the 872G/872GP add a hydraulic 6WD system. The 872G/872GP also have the higher published engine-power rating of up to 300 hp compared with up to 280 hp for the 870G/870GP.
Does TM13070X19 cover the 872G 6WD hydraulic system?
Yes. The manual includes 6WD-specific information for the pump, charge pump, engagement manifold and hydraulic motor, along with related front-drive components.
Does this manual cover the John Deere 9.0 L engine?
Yes. The applicable engine section includes removal and installation procedures for the covered 6090HDW engine configurations, with additional sections for cooling and auxiliary engine systems.
Does the manual include DF230 transmission repair information?
Yes. TM13070X19 includes DF230 transmission removal and installation procedures and transmission hydraulic-system information.
Can I use this manual for circle gearbox repairs?
Yes. The grading-device section includes circle gearbox and circle-related repair procedures together with the hydraulic components used for circle rotation.
Does it cover blade lift and moldboard hydraulics?
Yes. The grading-device hydraulic section addresses functions and components associated with blade lift, blade pitch, circle side shift and other grader-control functions.
Is TM13070X19 suitable for every 870G or 872G?
No. John Deere issued different publications for later production ranges. Check the complete machine PIN before ordering rather than relying only on the model designation.
Built Around the Actual G-Series Grader
John Deere TM13070X19 is a targeted repair reference for the 870G, 870GP, 872G and 872GP—not a generic motor-grader maintenance guide. Its usefulness comes from following the machine all the way from the 9.0 L engine and DF230 transmission through the axles, 6WD system, hydraulics, steering, articulation, circle drive and moldboard controls.
For an 870G/870GP, the manual provides the repair information needed around the 4WD driveline and grader systems. For an 872G/872GP, it adds the critical 6WD hydraulic and front-drive information. If your machine's PIN falls within the stated coverage, verify that range before ordering and use the publication number TM13070X19 as the primary manual identifier.
