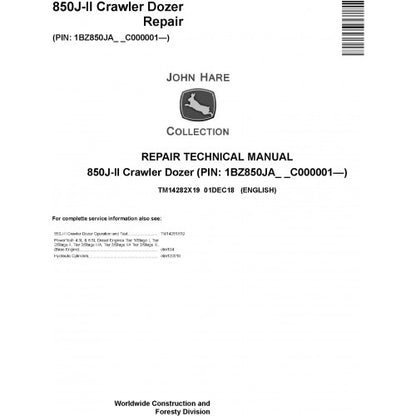

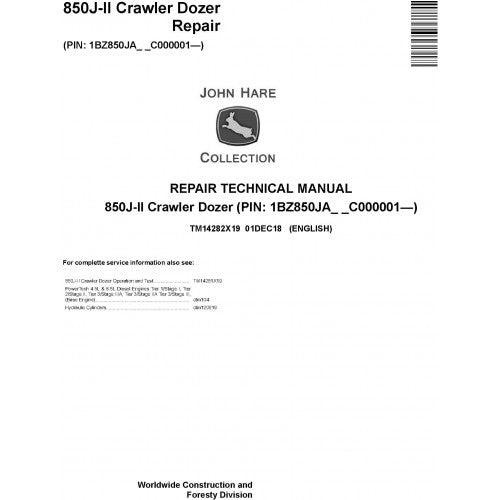

John Deere 850J-II Crawler Dozer PDF Technical Repair Service Manual TM14282X19
When your John Deere 850J-II needs more than routine maintenance, having the repair information for the correct machine series can make a major difference. TM14282X19 is the Technical Repair Manual for the 850J-II and brings together the procedures needed for component removal, inspection, adjustment, disassembly and reassembly across the dozer's major systems.
Whether you are dealing with track or undercarriage work, hydrostatic drive repairs, engine removal, hydraulic components, blade service or electrical-system work, this manual gives you a model-specific reference instead of making you rely on general crawler-dozer information.
Manual Specification
| Item | Details |
|---|---|
| Brand | John Deere |
| Model | 850J-II Crawler Dozer |
| Publication Number | TM14282X19 |
| Manual Type | Technical Repair Manual |
| PIN Coverage | 1BZ850JA__C000001– |
| Language | English |
| Format | |
| Identified Page Count | 486 pages |
| Related Manual | TM14281X19 Operation & Test Technical Manual |
John Deere 850J-II Machine Information
| Specification | 850J-II |
|---|---|
| Machine Type | Crawler Dozer |
| Engine | John Deere PowerTech 6068 / PowerTech Plus 6068, configuration dependent |
| Engine Displacement | 6.8 L (414 cu. in.) |
| Net Rated Power | 205 hp (153 kW) @ 1,800 rpm |
| Peak Torque | 915 Nm (675 lb-ft) @ 1,500 rpm |
| Transmission | Hydrostatic drivetrain |
| Hydraulic Flow | Up to 163 L/min (43 gpm), configuration dependent |
| Electrical System | 24 V |
| Operating Weight | 18,219–20,146 kg (40,165–44,414 lb.), configuration dependent |
| Track on Ground | 2,769–3,284 mm (109–129 in.) |
| Blade Width | 3,251–4,267 mm (128–168 in.) |
What This 850J-II Repair Manual Covers
- Tracks: track-system service and related undercarriage components.
- Transmission: removal and installation, control linkage and hydrostatic-system repair.
- Engine: engine removal and installation plus auxiliary engine systems.
- Hydraulic System: hydraulic components associated with the machine and parking brake.
- Blade: blade structure and hydraulic service information.
- Axles: drive axle housing, shafts, bearings and reduction gears.
- Electrical: electrical-component removal and installation information.
- Operator Station: enclosure, seat, HVAC and related components.
- Ripper: ground-conditioning attachment service information.
- Dealer Tools: applicable dealer-fabricated tool information.
850J-II Repair Information at a Glance
| Repair Area | Useful When You Need To... |
|---|---|
| Hydrostatic System | Service or rebuild hydrostatic-drive components |
| Track System | Work on the crawler undercarriage |
| Engine | Remove, install or service engine-related components |
| Blade Hydraulic System | Repair hydraulic components affecting blade operation |
| Axle & Reduction Gears | Inspect or repair drive-system components |
| Park Brake | Service the brake and associated controls |
| Ripper | Service the ground-conditioning attachment |
Why This Manual Fits the 850J-II
The 850J-II uses a fully modulated hydrostatic drivetrain and six-way blade system, so repair work can involve both mechanical components and hydraulically controlled functions. John Deere lists the machine at 205 hp, with operating weights ranging from approximately 18,219 to 20,146 kg for the referenced configuration range. ([deere.asia](https://www.deere.asia/en/dozers/850j-ii-crawler-dozer/?utm_source=chatgpt.com))
That makes the correct technical manual particularly useful for larger jobs where component identification, specifications, torque values and proper removal or assembly procedures matter. TM14282X19 is specifically identified for PIN 1BZ850JA__C000001 and later, so the PIN should be checked before ordering. ([therepairmanual.com](https://therepairmanual.com/john-deere/john-deere-850j-ii-crawler-dozer-technical-manual-sn-from-c000001/?utm_source=chatgpt.com))
PDF Features
- English-language PDF
- 486-page identified edition
- Searchable digital reference
- Printable repair information
- Zoomable diagrams and illustrations
- Component removal and installation procedures
- Specifications, torque values and repair information
- Suitable for workshop and field reference
Frequently Asked Questions
What is John Deere TM14282X19?
TM14282X19 is the Technical Repair Manual for the John Deere 850J-II Crawler Dozer covered by PIN 1BZ850JA__C000001 and later.
Does TM14282X19 cover the hydrostatic transmission?
Yes. The transmission section includes hydrostatic-system service information.
Does the manual include engine repair information?
Yes. Engine removal and installation and auxiliary engine-system procedures are included.
Does it cover blade and hydraulic repairs?
Yes. The manual includes the bulldozer blade, blade frames and hydraulic-system service information.
How many pages are in the manual?
The identified TM14282X19 edition is listed at 486 pages. Digital reproductions can differ in pagination, so the publication number and PIN coverage are the better identifiers.
Is TM14282X19 the same as TM14281X19?
No. TM14282X19 is the Repair Technical Manual, while TM14281X19 is the related Diagnostic, Operation and Test Technical Manual.
