John Deere 544K 4WD Loader Pdf Technical Repair Service Manual TM13369X19

John Deere 544K 4WD Loader Technical Repair Service Manual TM13369X19

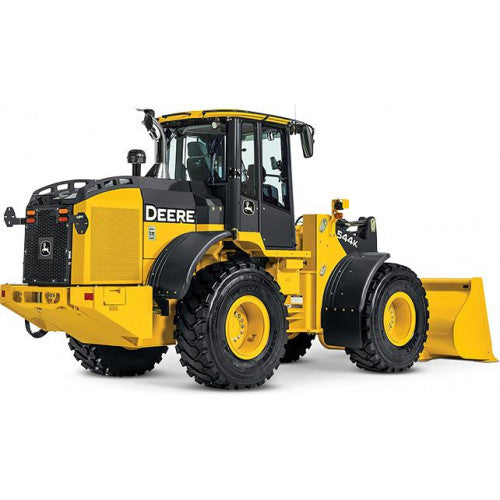

When a John Deere 544K starts showing hydraulic performance issues, driveline wear, steering problems, brake faults, or an engine-related repair need, having the correct technical manual for the machine's production range can make the difference between a controlled repair and unnecessary component replacement. The John Deere 544K 4WD Loader Repair Technical Manual TM13369X19 provides detailed service information for the mechanical systems of the loader covered by its specific PIN range.

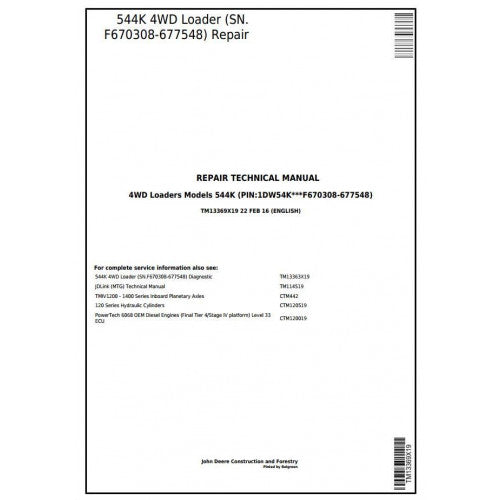

This manual is identified for John Deere 544K 4WD loaders with PIN 1DW544K___F670308 through F677548. The publication is an English-language Repair Technical Manual and is intended for technicians performing component removal, installation, inspection, disassembly, assembly, adjustment, and related repair work.

Manual Identification

Specification	Details
Manufacturer	John Deere
Machine	544K 4WD Loader
Manual Type	Repair Technical Manual
Publication Number	TM13369X19
PIN / Serial Coverage	1DW544K___F670308 – F677548
Language	English
Format	PDF
Reference Edition	14 June 2018

What TM13369X19 Covers

The manual is organized around the major repair systems of the 544K. Instead of providing only operating instructions, it gives workshop-oriented information for accessing and servicing components throughout the loader.

• General repair and safety information
• Torque values and service specifications
• Wheels and tires
• Axles and differentials
• Drive shafts and universal joints
• Transmission and powertrain components
• Engine removal and installation
• Engine auxiliary systems
• Electrical system components
• Frame and supporting structure
• Operator station and cab-related components
• Heating and air-conditioning system
• Hydraulic system
• Loader linkage and attachment components
• Dealer-fabricated service tools

544K Machine Technical Profile

Machine Characteristic	John Deere 544K
Machine Type	4WD articulated wheel loader
Engine	John Deere PowerTech PVS 6068 / 6068H depending on configuration
Displacement	6.8 L (414 cu. in.)
Cylinders	6
Net Peak Power	121 kW (163 hp) at 1,800 rpm for the PowerTech PVS 6068 configuration
Peak Net Torque	683 Nm (504 lb.-ft.) at 1,100 rpm for the PowerTech PVS 6068 configuration
Fuel System	Electronically controlled high-pressure common rail
Aspiration	Turbocharged with charge-air cooling
Steering	Fully hydraulic articulated steering
Loader Configurations	Z-Bar, High-Lift and Powerllel configurations

Engine and Engine-Related Service

The 544K's 6.8-liter six-cylinder diesel power unit uses electronically controlled fuel delivery and turbocharged, charge-air-cooled induction. Engine-related repairs can therefore involve mechanical components as well as fuel, intake, cooling, exhaust, and electrical systems.

TM13369X19 includes engine removal and installation information and associated engine auxiliary-system coverage. This becomes useful when a repair requires more than routine engine maintenance and the technician needs a structured procedure for gaining access to the power unit or related components.

Axles, Differentials and Driveline

A 4WD wheel loader places considerable load on its axles and driveline during loading, digging, stockpiling, and travel. The repair manual provides dedicated coverage for the wheels, axles, differentials, drive shafts, and universal-joint areas.

These sections are useful when investigating oil leakage, abnormal drivetrain noise, excessive play, worn driveline components, or a repair that requires removal of axle or drive components.

Hydraulic System Service

Hydraulic performance is central to the 544K because the loader's boom, bucket, steering, and related functions depend on the hydraulic system. A slow lift, weak bucket response, abnormal hydraulic noise, or inconsistent function does not necessarily mean that the main pump has failed.

The hydraulic section of TM13369X19 provides the technical reference needed when inspecting and repairing hydraulic components. It can help technicians approach a fault through the relevant system rather than replacing major components based only on symptoms.

Loader Linkage and Attachment Repairs

The loader linkage operates under high loads and repeated cycles. Wear in linkage components, pins, bushings, cylinders, or attachment-related parts can affect bucket positioning and overall machine performance.

The loader section provides model-specific repair information for the working equipment, making it useful for component removal, installation, inspection, and service of the loader assembly.

Electrical and Operator-System Work

Electrical repairs can become more complicated when a component is physically difficult to access or when the fault is connected with another machine system. The manual includes electrical-system service information alongside operator-station and cab-related coverage.

This is useful for repairs involving electrical components, operator controls, cab equipment, instrumentation, heating and air conditioning, or components requiring access through the operator station.

Technical Sections in TM13369X19

Section	Service Focus
Section 00 – General Information	Safety and torque values
Section 01 – Wheels	Wheel and tire service
Section 02 – Axles & Suspension	Axles, differentials and related components
Section 03 – Transmission	Transmission and associated powertrain components
Section 04 – Engine	Engine removal, installation and service
Section 05 – Engine Auxiliary Systems	Supporting engine systems
Section 08 – Electrical	Electrical system service
Section 10 – Frame	Frame and supporting structure
Section 17 – Operator Station	Cab, seat, controls and related operator-area components
Section 18 – Sheet Metal	Hood, panels and styling components
Section 19 – HVAC	Heating and air-conditioning system
Section 21 – Main Hydraulic System	Hydraulic system repair and service
Section 23 – Loader	Loader structure, linkage and attachment-related service
Section 99 – Dealer Fabricated Tools	Special service-tool information

Useful When the Repair Gets Beyond Routine Maintenance

• Hydraulic function becomes slow: Use the hydraulic-system information to investigate the applicable circuit and components before condemning the pump.
• Axle develops abnormal noise or leakage: Refer to the axle and differential sections for component-level service.
• Loader linkage requires rebuilding: Use the loader section when removing, inspecting, or reinstalling linkage components.
• Engine must be removed: The engine section provides the applicable removal and installation reference.
• Transmission or driveline needs service: Use the transmission, axle, and drive-shaft sections to work through the affected area.
• Cab access is required: Operator-station and sheet-metal information helps with component access and removal.
• Electrical component needs replacement: Use the electrical section together with the applicable machine-system information.

Important PIN Verification

John Deere 544K loaders were produced across multiple serial-number ranges, and different technical publications can apply to different production groups. TM13369X19 is specifically associated with PIN 1DW544K___F670308 through F677548.

For this reason, the machine PIN should be checked before ordering. A 544K model designation by itself is not enough to guarantee that every repair procedure belongs to the same technical-manual edition.

Digital PDF Reference Features

• Language: English
• Format: PDF
• Searchable: Find procedures and component names quickly
• Printable: Print selected pages for workshop use
• Zoomable: Enlarge technical illustrations and diagrams on screen
• Organized by system: Locate engine, axle, hydraulic, electrical, loader and other repair sections efficiently
• Digital access: Convenient reference for workshop or field service

Frequently Asked Questions

What is John Deere TM13369X19?

TM13369X19 is the Repair Technical Manual for the John Deere 544K 4WD Loader covering the applicable F670308–F677548 PIN range.

What serial numbers does TM13369X19 cover?

The identified coverage is 1DW544K___F670308 through F677548. Always compare the complete PIN on the machine with the manual before purchasing.

Does TM13369X19 cover the 544K hydraulic system?

Yes. The manual includes a dedicated main hydraulic system section together with loader-related hydraulic service information.

Does the manual include engine removal procedures?

Yes. The engine section includes engine removal and installation information along with coverage of related auxiliary systems.

Does TM13369X19 cover the loader linkage?

Yes. The loader section provides service information for the machine's loader and related working equipment.

Is TM13369X19 a diagnostic or repair manual?

TM13369X19 is a Repair Technical Manual. John Deere also issued a separate Operation and Test Technical Manual, TM13363X19, for the applicable 544K production range.

How is this manual different from a generic 544K service guide?

TM13369X19 is tied to a specific 544K production range and provides system-specific repair information for components such as the axles, transmission, engine, hydraulics, electrical system, operator station and loader.

Keep the Correct 544K Repair Information Within Reach

The John Deere 544K 4WD Loader Repair Technical Manual TM13369X19 is a practical reference for technicians working on the covered F670308–F677548 machines. From a hydraulic repair or loader-linkage rebuild to engine removal, axle service, driveline work, electrical repairs, and operator-station maintenance, the manual brings the machine's major repair systems into one organized technical resource.

For the best match, verify the loader's complete PIN before purchasing so the TM13369X19 publication corresponds to the production range of your John Deere 544K.
