John Deere 524K-II 4WD Loader Pdf Diagnostic, Operation and Tests Service Manual TM14139X19

John Deere 524K-II 4WD Loader Diagnostic, Operation & Test Technical Manual TM14139X19

When a John Deere 524K-II still runs but the hydraulic functions are slow, transmission response is abnormal, a warning appears on the display, or an electronic controller reports a fault, the next step should be measurement—not guesswork. TM14139X19 is the diagnostic and operation/test publication developed around the 524K-II platform, providing operational checkout procedures, diagnostic trouble-code information, system diagrams, adjustments and component tests.

This manual is particularly useful because the 524K-II combines a 140-hp PowerTech engine, electronic control modules, PowerShift transmission, 4WD drivetrain, hydraulic loader system and electronically monitored machine functions. Instead of treating these systems as unrelated components, TM14139X19 provides a structured path from the machine symptom to the appropriate diagnostic test.

John Deere 524K-II Machine Information

Specification	524K-II 4WD Loader
Machine Type	4WD Wheel Loader
Engine	John Deere PowerTech 4.5 L, 4-cylinder
Net Peak Power	104 kW / 140 hp
Bucket Capacity Range	Approximately 1.9–3.4 m³ / 2.5–4.5 yd³ depending on configuration
Standard Z-Bar Tipping Load	9,168 kg / 20,212 lb at 40° full turn, published pin-on-bucket configuration
Breakout Force	9,060 kg / 19,974 lb, published Z-Bar configuration
Operating Weight	12,668 kg / 27,928 lb, published Z-Bar configuration
Hydraulic Cycle Time	10.5 seconds total in published Z-Bar/High-Lift configuration
Raise Time	6.1 seconds
Dump Time	1.4 seconds
Lower / Float-Down Time	3.0 seconds
Outside Turning Radius	Approximately 5.00 m / 16 ft 5 in
Typical Standard Tire	20.5R25
Drive	4WD

Specifications vary with bucket, linkage, tires, ballast, lift arrangement and other options. The published tipping-load and operating-weight figures above correspond to specific John Deere configurations and should not be treated as universal values for every 524K-II.

What TM14139X19 Actually Helps You Diagnose

System	Diagnostic Content
Engine	Theory of operation, system diagrams, diagnostic information and engine tests
Electrical System	Electrical theory, system diagrams, subsystem diagnostics, monitor operation, diagnostic test box, adjustments and tests
Power Train	Transmission theory, system diagrams, electronic diagnostics, adjustments and powertrain tests
Hydraulic System	Hydraulic theory, system diagrams, diagnostic information, adjustments and hydraulic tests
Heating & Air Conditioning	HVAC theory, system diagrams, diagnostic information and performance tests

The 524K-II Diagnostic Network

The 524K-II is not diagnosed only through mechanical inspection. TM14139X19 identifies diagnostic information for multiple electronic control units and modules, including the Engine Control Unit (ECU), Transmission Control Unit (TCU), Vehicle Control Unit (VCU), Sealed Switch Module (SSM), Advanced Display Unit (ADU), Radar Object Detection (ROD) and Ground Speed Radar (RDR).

That matters when a warning light or diagnostic code appears but the failed part is not immediately obvious. A controller code can point toward a circuit, sensor, communication path or controlled component that needs further testing. The manual provides the diagnostic structure needed to continue from the code to the relevant system.

Operational Checkout Comes Before Guessing at Parts

One of the strongest features of TM14139X19 is the dedicated Operational Checkout Procedure. It gives the technician a structured way to evaluate machine behavior before dismantling major components.

This is especially useful for complaints such as:

• Hydraulic functions taking longer than expected
• Loader response changing when the machine is under load
• Transmission engagement or shifting concerns
• Unexpected warning messages or diagnostic codes
• Engine performance complaints
• Electrical functions that operate intermittently
• Air-conditioning performance problems

The published 524K-II specifications provide useful performance benchmarks as well. For example, John Deere lists a combined hydraulic cycle time of approximately 10.5 seconds for the specified Z-Bar/High-Lift configuration, consisting of 6.1 seconds raise, 1.4 seconds dump and 3.0 seconds lower/float. These figures can provide useful context when investigating an abnormal loader cycle, although actual test conditions and configuration must be considered.

Hydraulic Diagnostics for the Loader System

The 524K-II's hydraulic system is responsible for converting engine power into practical loader performance—boom movement, bucket positioning and attachment functions. A complaint such as “the loader is slow” does not automatically mean the pump has failed.

TM14139X19 approaches the hydraulic system through theory of operation, system diagrams, diagnostic information, adjustments and tests. This allows a technician to investigate the hydraulic circuit before removing an expensive pump or valve assembly.

Hydraulic Complaint	Diagnostic Direction
Slow boom raise	Hydraulic system operation, pressure/flow-related diagnostics and cycle-time evaluation
Bucket response is abnormal	Loader hydraulic circuit and control-system diagnosis
Several functions are slow	Main hydraulic system and pump-related testing
Performance changes under load	System-pressure and hydraulic-control diagnosis
Hydraulic function does not respond correctly	System diagram, diagnostic information and control-circuit testing

Powertrain and Transmission Troubleshooting

The 524K-II's drivetrain is another area where symptom-based troubleshooting can lead to unnecessary component replacement. A loader that hesitates, shifts incorrectly or loses expected travel performance may have an electronic control, sensor, hydraulic or transmission-related cause.

The powertrain section of TM14139X19 contains theory of operation, system diagrams, diagnostic information, adjustments and tests. This makes it useful for separating an electronic-control problem from a mechanical transmission problem before major disassembly.

Because the manual also includes TCU diagnostic information, a technician can move from a transmission-related fault indication into the appropriate diagnostic section rather than treating every transmission warning as evidence that the complete transmission needs rebuilding.

Engine Diagnostic Coverage

The 524K-II uses a 4.5 L John Deere PowerTech engine with a published net peak power rating of 140 hp. TM14139X19 provides the engine's theory of operation, system diagrams, diagnostic information and tests.

This is useful for investigating a loader that starts but fails to produce expected working power. Instead of immediately assuming a turbocharger, fuel-system or electronic-control component has failed, the technician can use the engine diagnostic procedures to identify the system responsible for the observed symptom.

• Engine operating theory
• Engine system diagrams
• Electronic engine diagnostic information
• Sensor and control-system diagnosis
• Engine performance tests
• Applicable engine adjustments

Electrical System: More Than a Wiring Diagram

The electrical section is organized around both system operation and diagnosis. It includes electrical system diagrams, subsystem diagnostics, monitor operation and information relating to the diagnostic test box.

This becomes valuable when an electrical fault is intermittent. A component may work correctly when tested separately while the machine still reports an abnormal condition because of a connector, circuit, communication or control issue. TM14139X19 gives the technician a system-level reference for tracing that problem.

Diagnostic Modules Covered

Control / Module	Diagnostic Information
ECU	Engine Control Unit diagnostic trouble codes
TCU	Transmission Control Unit diagnostic trouble codes
VCU	Vehicle Control Unit diagnostic trouble codes
SSM	Sealed Switch Module diagnostic trouble codes
ADU	Advanced Display Unit diagnostic trouble codes
ROD	Radar Object Detection diagnostic trouble codes
RDR	Ground Speed Radar diagnostic trouble codes

Hydraulic Performance Meets Machine Productivity

The 524K-II is a compact-to-mid-size production loader, but its published 9,168 kg tipping load and 9,060 kg breakout force in the specified Z-Bar configuration show why hydraulic and linkage performance matter. A loss of hydraulic pressure or abnormal cycle time can directly affect bucket loading, stockpile work and truck-loading productivity.

The manual therefore has practical value beyond simply identifying a fault code. When a machine does not deliver the expected boom or bucket response, the technician can use the hydraulic theory and testing sections to determine whether the problem belongs to the pump, control circuit, valve system, actuator or another part of the hydraulic architecture.

HVAC Diagnostic Coverage

TM14139X19 also includes a dedicated Heating and Air Conditioning section. It covers system theory, diagrams, diagnostic information and tests rather than limiting the information to basic operator-level climate-control instructions.

This is useful when the cab is not cooling correctly, a control function does not respond, or the HVAC system requires systematic electrical and performance diagnosis.

Manual Specification Table

Manual Detail	Information

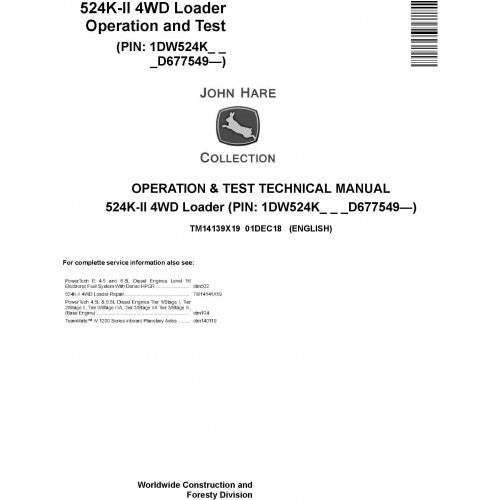

Publication Number	TM14139X19
Manual Type	Diagnostic, Operation and Test Technical Manual
Machine	John Deere 524K-II 4WD Loader
PIN Coverage	1DW524K___D677549–
Language	English
Format	PDF
Core Sections	Diagnostics, Operational Checkout, Engine, Electrical System, Power Train, Hydraulic System, Heating & Air Conditioning
ECU/Module Diagnostics	ECU, TCU, VCU, SSM, ADU, ROD and RDR
Electrical Diagrams	Included
Hydraulic System Tests	Included
Powertrain Tests	Included
Reported Digital Page Count	Approximately 864 pages in one identified reproduction; other digital editions report approximately 908 pages
Reported PDF File Size	Approximately 64.43 MB for one identified 2021 digital reproduction
Digital Features	Searchable and printable in compatible PDF editions

Page count and file size can vary between digital reproductions, scanning methods and PDF packaging. The publication number and PIN coverage are the stronger compatibility identifiers.

Machine Specifications That Help Put the Tests Into Context

Published 524K-II Parameter	Value
Net Peak Power	104 kW / 140 hp
Operating Weight	12,668 kg / 27,928 lb
Z-Bar Tipping Load	9,168 kg / 20,212 lb
Z-Bar Breakout Force	9,060 kg / 19,974 lb
Bucket Capacity Range	1.9–3.4 m³ / 2.5–4.5 yd³
Hydraulic Raise Time	6.1 seconds
Bucket Dump Time	1.4 seconds
Lower / Float Time	3.0 seconds
Total Hydraulic Cycle	10.5 seconds
Turning Radius	5.00 m / 16 ft 5 in

Practical Diagnostic Situations

What the Operator Reports	Where to Start in TM14139X19
“The loader hydraulics feel slower than before.”	Operational checkout followed by Hydraulic System theory, diagnostics and tests
“The transmission is not shifting normally.”	TCU diagnostic information and Power Train diagnostic procedures
“A warning code keeps returning.”	Identify the applicable ECU, TCU, VCU, SSM, ADU, ROD or RDR diagnostic section
“The machine has lost engine performance.”	Engine theory, diagnostic information and performance tests
“An electrical function works intermittently.”	Electrical system diagrams, subsystem diagnostics and diagnostic test-box information
“The loader cycle is noticeably slower.”	Operational checkout and hydraulic performance testing
“The cab air conditioning is not performing properly.”	Heating and Air Conditioning theory, diagnostics and tests

Why TM14139X19 Is Different From a Repair Manual

A diagnostic and operation/test manual answers a different question from a component repair manual. A repair manual tells you how to remove, disassemble and rebuild a component. TM14139X19 helps establish whether that component is actually the cause of the failure.

For example, if hydraulic performance is poor, there is little value in immediately replacing a pump if the real issue is elsewhere in the control circuit. Likewise, a transmission diagnostic code does not automatically mean the transmission needs rebuilding. The diagnostic procedure should be used first to identify the affected circuit or system.

Digital PDF Features

• English-language John Deere technical information
• PDF format for workshop and field reference
• Searchable content in compatible digital editions
• Printable technical pages
• System diagrams and diagnostic illustrations
• Electronic control-unit diagnostic information
• Operational checkout procedures
• Engine, electrical, powertrain and hydraulic testing
• HVAC diagnostic procedures
• Structured test information for faster fault isolation

Frequently Asked Questions

What machine does TM14139X19 cover?

TM14139X19 is the Diagnostic, Operation and Test Technical Manual for the John Deere 524K-II 4WD Loader with PIN coverage beginning at 1DW524K___D677549.

What is the difference between TM14139X19 and a repair manual?

TM14139X19 is focused on diagnosis, operational checkout, system theory, adjustments and testing. A separate Repair Technical Manual is used for detailed component removal, disassembly and rebuilding procedures.

Does TM14139X19 include diagnostic trouble codes?

Yes. It includes diagnostic trouble-code sections for the ECU, TCU, VCU, SSM, ADU, ROD and RDR systems.

Does this manual include hydraulic testing?

Yes. The Hydraulic System section contains theory of operation, system diagrams, diagnostic information, adjustments and tests.

Does it include transmission diagnostics?

Yes. The Power Train section covers transmission theory, system diagrams, diagnostic information, adjustments and tests, with separate TCU diagnostic trouble-code information.

What engine is in the 524K-II?

The 524K-II is powered by a John Deere PowerTech 4.5 L engine, with a published net peak power rating of 104 kW / 140 hp.

What is the 524K-II operating weight?

John Deere publishes an operating weight of approximately 12,668 kg / 27,928 lb for the specified Z-Bar configuration. Actual machine weight changes with tires, bucket, linkage and other equipment.

What is the 524K-II tipping load?

The published Z-Bar tipping load is approximately 9,168 kg / 20,212 lb at a 40-degree full turn with the specified pin-on bucket configuration.

Does the manual cover the loader's electrical system?

Yes. It includes electrical theory, system diagrams, subsystem diagnostics, monitor operation, diagnostic test-box information, adjustments and tests.

Does TM14139X19 cover air conditioning?

Yes. Heating and Air Conditioning is a dedicated section containing theory of operation, system diagrams, diagnostic information and tests.

How can I verify that this manual matches my loader?

Check the complete machine PIN. The identified TM14139X19 coverage begins with 1DW524K___D677549. The PIN should be checked before relying on any model-specific diagnostic procedure.

A Diagnostic Reference for the 524K-II Working Machine

The John Deere 524K-II is a loader where engine power, hydraulic response, drivetrain control and electronic monitoring all work together. TM14139X19 is valuable because it addresses those systems from a diagnostic perspective rather than simply listing replacement procedures.

With its ECU/TCU/VCU/SSM/ADU diagnostic information, operational checkout, engine testing, electrical diagrams, Power Train diagnostics, hydraulic tests and HVAC troubleshooting, this manual gives technicians a structured way to move from an operator complaint or fault code toward a measurable diagnosis.

For the best compatibility, verify the complete 1DW524K___D677549– PIN range before ordering and use TM14139X19 as the primary publication identifier.
