John Deere 444H, 544H 4WD Loader; TC44H, TC54H Tool Carrier Loader Pdf Diagnostic, Operation and Tests Service Manual TM1604

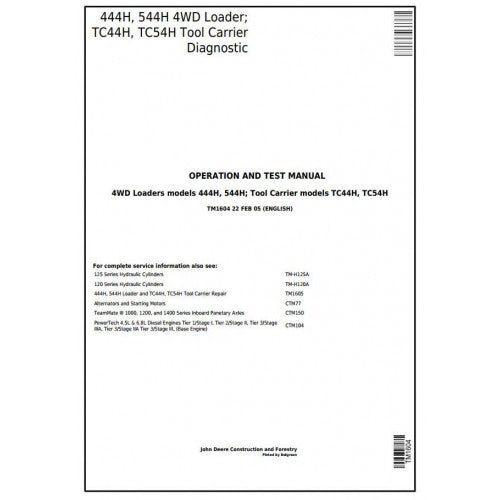

John Deere 444H, 544H, TC44H & TC54H Diagnostic, Operation & Test Manual TM1604

When a wheel loader has lost hydraulic performance, a powershift transmission is slipping, a ride-control function behaves differently from normal, or an electrical circuit refuses to operate, replacing parts without testing can become an expensive guessing game. John Deere TM1604 is built for exactly this stage of service work. It combines operational checkout procedures, system theory, diagnostic information, adjustments and component tests for the 444H and 544H 4WD loaders and their TC44H and TC54H Tool Carrier counterparts.

This is not primarily a component rebuild manual. It is the technical publication to use when you need to determine why a system is not operating correctly before moving into major repair. Pressure tests, flow tests, electrical diagrams, sensor diagnostics, clutch tests, hydraulic leakage checks and operational checks are organized by machine system.

Machine Information

Machine	Machine Type	Engine	Net Power	Approx. Operating Weight	General-Purpose Bucket
444H	4WD Wheel Loader	John Deere PowerTech 4.5 L	110 hp / 82 kW	21,457 lb / 9,733 kg	2.10 yd³ / 1.60 m³
544H	4WD Wheel Loader	John Deere PowerTech 6.8 L	130 hp / 97 kW	25,873 lb / 11,736 kg	2.60 yd³ / 2.00 m³
TC44H	Tool Carrier	John Deere PowerTech 4.5 L	110 hp / 82 kW	Approx. 21,460 lb / 9,734 kg	2.10 yd³ / 1.60 m³
TC54H	Tool Carrier	John Deere PowerTech 6.8 L	130 hp / 97 kW	Approx. 25,428 lb / 11,534 kg	2.60 yd³ / 2.00 m³

Operating weights depend on tires, ballast, counterweight, attachment and machine configuration. Published specifications are therefore useful for identification and comparison but should not replace the machine's individual specification plate.

444H vs. 544H: What the Different Machine Sizes Mean for Diagnosis

The 444H and TC44H use the 4.5 L PowerTech engine, while the larger 544H and TC54H use the 6.8 L PowerTech engine. TM1604 reflects these differences in its engine theory and diagnostic information, while also providing common system-level testing for the loader and tool-carrier platforms.

The difference is especially important when investigating engine performance, transmission response and hydraulic working functions. A test procedure may identify a symptom at the machine level, but the correct engine or powertrain reference depends on the model and serial-number configuration.

Manual Identification

Publication	TM1604
Latest Identified Edition	06DEC17
Document Type	Diagnostic, Operation and Test Technical Manual
Models	444H, 544H, TC44H, TC54H
Language	English
Format	PDF
Primary Purpose	System diagnosis, operational checkout, testing and adjustment
Electrical Information	System diagrams, subsystem diagnostics and references
Hydraulic Testing	Pressure, flow, leakage, drift, cycle-time and valve tests
Powertrain Testing	Transmission, torque converter, axle, differential, brake and driveline tests

What Makes TM1604 Different From a Basic Loader Service Manual?

The most useful feature of this publication is the way it approaches a failure. Instead of simply telling the technician how to remove a pump or transmission, it provides a sequence for determining whether that component is actually responsible for the symptom.

The manual is divided into theory of operation, diagnostic information, adjustments and tests. That makes it useful when the machine is still operational enough to test but is not performing correctly.

System	Diagnostic / Test Coverage
Engine	Theory of operation, engine diagnostics, idle adjustment, sensor diagnostics, air-intake leakage, radiator airflow and engine power tests
Electrical	System information, wiring/system diagrams, subsystem diagnostics and electrical references
Transmission	Transmission malfunction diagnosis, pump flow, system pressure, clutch pressure, element leakage and lubrication-pressure testing
Torque Converter	Converter-in pressure, converter-out pressure, relief pressure, outlet flow and stall-speed tests
Axles & Differentials	Axle recirculation pump/motor flow, breather and related pressure/temperature tests
Brakes	Service-brake diagnosis, park-brake diagnosis, accumulator and brake-valve tests
Hydraulics	Pump margin, standby pressure, maximum pressure, pump flow, case drain, cylinder drift, leakage, valve leakage and cycle-time testing
Steering	Steering-cylinder operation, steering-valve leakage/drift and secondary-steering tests
Ride Control	ON/OFF operation and bucket-dump operational checks across applicable serial-number ranges
HVAC	R134a recovery, evacuation, charging, pressure diagnostics, switch testing and system performance checks

Hydraulic Diagnostics: From Symptoms to Measured Results

Hydraulic complaints on a loader can sound similar even when the causes are completely different. Slow boom movement, weak bucket breakout, excessive cylinder drift and steering problems can originate in different portions of the hydraulic circuit.

TM1604 provides measurable test procedures rather than relying only on symptom descriptions. The hydraulic section includes pump margin and low-standby pressure adjustment, maximum hydraulic pressure, pump flow, pump case drain, loader relief pressure, cylinder drift, cylinder leakage, steering-valve leakage, valve drift and cycle-time testing.

For example, if a 544H boom feels slow under load, the pump-flow and pressure tests can help determine whether the problem is associated with hydraulic supply rather than immediately condemning a boom cylinder. If a bucket slowly moves when the control is neutral, the cylinder-drift and leakage procedures provide a more appropriate diagnostic direction.

Transmission Testing for 444H and 544H

The powertrain section is particularly valuable when a loader develops poor acceleration, clutch slipping, abnormal transmission temperature, delayed engagement or drivetrain drag.

• Transmission pump flow testing for the applicable serial-number range
• Transmission system pressure testing
• Transmission clutch pressure testing
• Transmission element leakage testing
• Lubrication-pressure testing
• Torque-converter inlet pressure testing
• Torque-converter outlet pressure testing
• Torque-converter relief-pressure testing
• Torque-converter outlet-flow testing
• Torque-converter stall-speed testing
• Transmission oil-cooler thermal bypass valve testing
• Transmission oil-cooler restriction testing

The manual also identifies a Transmission Control Unit electronic-clutch adjustment for applicable 444H and 544H serial-number ranges. This is one reason the serial-number references in TM1604 should not be ignored when selecting a test procedure.

Engine Performance Testing

The engine section covers both the 4.5 L PowerTech 4045 and 6.8 L PowerTech 6068 engine families. It explains the operating principles needed to interpret diagnostic results and points to the applicable engine technical information where deeper engine-specific procedures are required.

Tests include:

• Display monitor tachometer checks
• Engine sensor diagnostics
• Air-intake system leakage testing
• Radiator airflow testing
• Engine power testing using engine pull-down
• Engine power testing using turbocharger boost pressure
• Driveline bearing and park-brake operational checks

This makes TM1604 useful when an engine feels underpowered but the underlying cause has not yet been established. A measured air-intake restriction, cooling-air problem or insufficient engine output can point the technician toward a very different repair path.

Electrical System and Wiring Diagnostics

Electrical problems can be difficult to isolate on older electronic loader systems when a technician only has access to individual components. TM1604 includes system diagrams, subsystem diagnostic information and electrical references to help trace the system rather than testing components blindly.

This section is relevant for problems involving electronically controlled transmission functions, monitor information, engine sensors and other electrically controlled subsystems. The manual's diagnostic structure is especially useful when a component tests correctly but the machine still does not receive the expected signal.

Ride Control and Machine-Specific Serial Breaks

Ride control operation is not treated as one universal procedure. TM1604 separates certain tests by serial-number ranges, including the S.N. —582200 and S.N. 582201— configurations.

The manual provides operational checks for ride control in the ON and OFF positions and specifically addresses bucket-dump behavior. This kind of serial-number-specific information is important when diagnosing a loader that appears to operate normally in one condition but behaves differently when ride control is selected.

Tool Carrier Diagnostic Coverage

The TC44H and TC54H Tool Carriers share many basic systems with the corresponding loaders but have their own hydraulic and attachment-related considerations. TM1604 includes tool-carrier hydraulic component locations and specific cylinder operation procedures.

Diagnostic coverage includes boom, tilt and bucket-cylinder operation for the applicable machines, making the manual useful for investigating attachment movement, hydraulic response and cylinder-related symptoms on Tool Carrier configurations.

Manual Content at a Glance

Section	Main Information
9000 — General Information	Safety, general specifications, torque values, fuels and lubricants
9005 — Operational Checkout	Complete machine operational checkout procedure
9010 — Engine	Theory, diagnostics, adjustments and tests
9015 — Electrical System	System information, diagrams, subsystem diagnostics and references
9020 — Power Train	Theory, diagnostics, adjustments and tests
9025 — Hydraulic System	Theory, diagnostics, adjustments and hydraulic tests
9031 — Heating & A/C	Operational checks, diagnostics, adjustments and HVAC tests

Hydraulic Test Examples Included

For technicians who need actual diagnostic procedures rather than general explanations, the hydraulic section contains tests such as:

• Hydraulic oil warm-up procedure
• Hydraulic pump margin and low-standby pressure test
• Hydraulic system maximum-pressure test
• Hydraulic pump flow test
• Hydraulic pump case-drain test
• Loader relief and circuit-relief valve pressure test
• Loader-cylinder drift test
• Boom, bucket and steering-cylinder leakage tests
• Steering-valve leakage and drift tests
• Secondary-steering pump relief-valve test
• Pilot-control-valve pressure test
• Pressure-reducing-valve pressure test
• Hydraulic cycle-time test
• Brake accumulator precharge test

PDF Specifications

Item	Details
Publication Number	TM1604
Identified Edition	06DEC17 (English)
Models	444H, 544H, TC44H, TC54H
Manual Type	Diagnostic, Operation and Test Technical Manual
Language	English
Format	PDF
Reported Digital Page Count	Approximately 826–832 pages depending on digital reproduction
Reported Digital File Size	Approximately 28 MB for one digital edition
Digital Navigation	Searchable text, bookmarks and table of contents in compatible editions
Print Use	Printable digital reference

Digital reproductions can differ in pagination and file size because of scanning, compression and packaging. The publication number and edition date are the stronger identifiers.

Common Problems This Manual Helps Investigate

Observed Problem	Useful Diagnostic Area
Loader hydraulic functions are slow	Pump flow, margin pressure, standby pressure and cycle-time testing
Bucket or boom drifts with controls neutral	Cylinder drift and leakage testing
Transmission slips or engages abnormally	Clutch pressure, element leakage, transmission pressure and pump-flow tests
Machine has poor power	Engine pull-down and turbocharger boost-pressure tests
Transmission runs excessively hot	Converter tests and transmission-oil cooler checks
Park brake does not release	Park-brake diagnostic and pressure procedures
Secondary steering is not functioning correctly	Secondary-steering pump and manifold tests
Ride control behaves incorrectly	Serial-number-specific ride-control operational checks
Electrical fault cannot be isolated	System diagrams and subsystem diagnostics
Air-conditioning performance is poor	R134a pressure diagnostics, switch tests and system checks

Why a Diagnostic & Test Manual Is Valuable on These H-Series Machines

The 444H and 544H are older H-Series machines, but their electronically controlled powertrain and hydraulic systems still require systematic testing when performance deteriorates. A pressure reading, flow measurement, leakage test or electrical signal can often tell you more than replacing a suspected component.

TM1604 is therefore best used before major component replacement. It gives the technician a structured route from operational checkout → system diagnosis → measurement → adjustment → confirmation. That approach can reduce unnecessary pump, valve, transmission and cylinder replacement and provide a documented basis for the repair decision.

Digital Manual Features

• English-language technical diagnostic information
• PDF format for computer, tablet and compatible mobile devices
• Searchable text for locating tests and procedures quickly
• Bookmarks and table of contents in compatible editions
• Printable pages for workshop reference
• Technical diagrams and system illustrations
• Electrical wiring/system diagrams
• Component locations and diagnostic references
• Step-by-step testing procedures

Frequently Asked Questions

What machines does John Deere TM1604 cover?

TM1604 covers the John Deere 444H and 544H 4WD loaders and the TC44H and TC54H Tool Carrier loaders.

What type of manual is TM1604?

It is a Diagnostic, Operation and Test Technical Manual. It focuses on operational checkout, system theory, diagnostics, adjustments and tests rather than serving as a general parts catalog.

Does TM1604 include hydraulic pressure tests?

Yes. It includes hydraulic pump pressure and flow tests, maximum system-pressure testing, case-drain testing, relief-valve tests, cylinder leakage and drift tests, steering-valve tests and cycle-time testing.

Can TM1604 diagnose transmission problems?

Yes. Transmission coverage includes pump-flow, system-pressure, clutch-pressure, element-leakage, lubrication-pressure and torque-converter tests, plus transmission-oil-cooler testing.

Does the manual cover both the 4.5 L and 6.8 L engines?

Yes. The engine section identifies the John Deere PowerTech 4.5 L 4045 and 6.8 L 6068 engine families and provides diagnostic and test information applicable to the covered machines.

Does it include wiring diagrams?

Yes. The electrical-system section contains system information, system diagrams, subsystem diagnostics and electrical references.

Does TM1604 cover the TC44H and TC54H Tool Carriers?

Yes. Tool Carrier hydraulic component locations and cylinder-operation procedures are included along with the broader machine diagnostic coverage.

Does the manual cover ride control?

Yes. TM1604 includes ride-control operational procedures and separates certain procedures by machine serial-number range, including configurations before and after S.N. 582200.

What edition should I look for?

The latest edition identified for this publication is TM1604 (06DEC17). Earlier editions also exist, so the edition date should be checked when comparing digital copies.

Test the Problem Before Replacing the Part

John Deere TM1604 is the diagnostic reference for determining what is actually happening inside the 444H, 544H, TC44H or TC54H before committing to a major repair. Its combination of operational checkout, engine testing, electrical diagnostics, transmission pressure tests, torque-converter checks, hydraulic flow and leakage tests, steering diagnostics, ride-control procedures and HVAC testing makes it particularly useful when a machine has a symptom but the failed component has not yet been identified.

For technicians servicing these H-Series loaders, the most important check is the machine model and applicable serial-number configuration before performing a test. Once matched correctly, TM1604 provides the measurements and procedures needed to turn a vague complaint such as “weak hydraulics,” “transmission slipping,” or “machine has no power” into a much more precise diagnostic decision.
