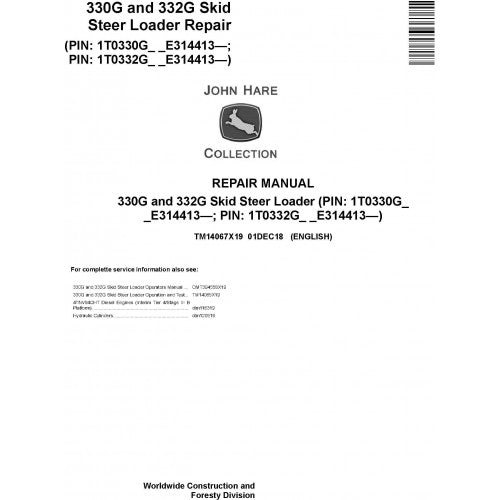

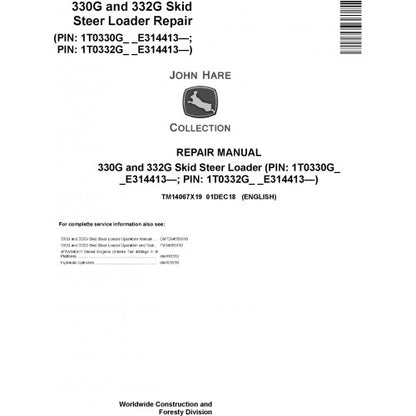

John Deere 330G & 332G Skid Steer Loader Repair Manual TM14067X19
A skid steer that loses hydraulic performance, develops drive problems, or needs major component removal cannot always be diagnosed by looking at the symptom alone. The John Deere 330G and 332G Skid Steer Loader Repair Technical Manual TM14067X19 gives technicians a model-specific reference for disassembly, inspection, adjustment, repair, and reassembly of the machine's major mechanical and hydraulic systems.
This edition is identified for 330G and 332G skid steer loaders with serial numbers E314413 through 387237. Checking the machine serial number before ordering is important because John Deere issued separate technical manuals for different production ranges.
Manual Identification
| Specification | Details |
|---|---|
| Manufacturer | John Deere |
| Models | 330G and 332G Skid Steer Loaders |
| Manual Type | Repair Technical Manual |
| Publication Number | TM14067X19 |
| Serial Coverage | E314413 – 387237 |
| Language | English |
| Format |
What Makes This Manual Useful in the Workshop?
TM14067X19 is intended for repair work rather than simply explaining daily operation. Its procedures are organized around the components a technician may need to remove, inspect, rebuild, adjust, or reinstall. That makes it useful when a repair has progressed beyond routine maintenance and accurate component-level information is required.
- Step-by-step component removal and installation procedures
- Disassembly and reassembly information
- Inspection and adjustment procedures
- Torque specifications and service information
- Hydraulic component and circuit service information
- Engine removal and related service procedures
- Axle, drive, transmission, and flywheel coupler information
- Loader frame and attachment-coupler service
- Operator station and enclosure removal procedures
- Safety and service information for workshop repairs
330G and 332G Machine Reference
| Machine Specification | 330G | 332G |
|---|---|---|
| Engine | Yanmar 4TNV94FHT / 4TNV94CHT depending on emissions configuration | Yanmar 4TNV94FHT / 4TNV94CHT depending on emissions configuration |
| Engine Displacement | 3.1 L | 3.1 L |
| Gross Rated Power | 68.0 kW (91.2 hp) | 74.6 kW (100 hp) |
| Net Peak Power | 66.0 kW (88.5 hp) | 72.0 kW (96.6 hp) |
| Peak Torque | 382 Nm at 1,700 rpm | 395 Nm at 1,700 rpm |
| Standard Hydraulic Flow | 80 L/min (23.5 gpm) | 95 L/min (25.0 gpm) |
| High-Flow Option | 138 L/min (36.5 gpm) | 156 L/min (41.1 gpm) |
| Hydraulic Pressure at Couplers | 23,787 kPa (3,450 psi) | 23,787 kPa (3,450 psi) |
| Low Travel Speed | 11.3 km/h (7 mph) | 11.3 km/h (7 mph) |
| High Travel Speed | 19.3 km/h (12 mph) | 19.3 km/h (12 mph) |
| Fuel Capacity | 96.5 L (25.5 gal.) | 96.5 L (25.5 gal.) |
| Operating Weight | Approximately 4,449–4,495 kg depending on configuration | Approximately 4,495–4,540 kg depending on configuration |
Repair Coverage by System
Engine and Auxiliary Systems
The engine portion addresses removal and installation procedures, while the engine auxiliary section covers systems associated with engine operation. Cooling, intake, and external exhaust and fuel-system components are included within the repair structure.
Powertrain and Drive Components
For machines showing abnormal travel behavior, drive-system concerns, or component wear, the manual provides service information for the powered wheels, drive axle housing and support, axle shafts, bearings, reduction gears, flywheel coupler, and transmission hydraulic system.
Hydraulic System
The hydraulic system is central to the 330G and 332G because it affects loader functions and attachment performance. TM14067X19 provides repair information for the main hydraulic system and loader hydraulic components, helping the technician approach component service without relying on generic skid steer procedures.
Electrical System
The electrical section covers removal and installation procedures for applicable electrical components. This is useful when access to electrical hardware requires machine-component removal or when an electrical component must be serviced as part of a larger repair.
Loader and Attachment Coupler
Loader-side service includes the attachment coupler, loader frame, and hydraulic system. This is particularly relevant when working on attachment coupling components, loader linkage-related repairs, or hydraulic issues affecting loader functions.
Technical Sections Included
| Section | Coverage |
|---|---|
| General Information | Safety and torque values |
| Wheels | Powered wheels and fastenings |
| Axles & Suspension Systems | Drive axle housing, support, axle shafts, bearings and reduction gears |
| Transmission | Flywheel coupler and hydraulic system |
| Engine | Engine removal and installation |
| Engine Auxiliary System | Cooling, intake, exhaust and external fuel supply systems |
| Electrical System | Electrical component removal and installation |
| Frame / Supporting Structure | Frame installation |
| Operator's Station | Operator enclosure, seat, seat belt, heating and air conditioning |
| Sheet Metal & Styling | Hood and engine enclosure |
| Safety & Convenience | Radio and associated components |
| Main Hydraulic System | Hydraulic system service |
| Loader | Attachment coupler, loader frame and hydraulic system |
| Dealer Fabricated Tools | Special service-tool information |
330G vs. 332G: Why the Model Matters
The two machines share the same general G-Series skid steer architecture, but their operating specifications are not identical. The 330G is rated at 91.2 hp gross while the 332G reaches 100 hp gross, and the 332G also provides higher standard and high-flow hydraulic capacity. These differences matter when selecting specifications and procedures for service work, especially around hydraulic performance and engine-related repairs.
The manual is therefore more useful than a generic John Deere skid steer repair guide because the product is identified specifically for the 330G and 332G production range covered by TM14067X19.
Practical Repair Situations
- Loader function is not operating correctly: Use the loader and hydraulic sections to identify the relevant component before beginning removal or repair.
- Travel system requires component service: The powered-wheel, axle, reduction-gear, and transmission information provides a logical starting point for mechanical inspection.
- Engine needs to be removed: The engine section provides the applicable removal and installation procedure rather than requiring a generic approach.
- Hydraulic component needs replacement: The hydraulic-system sections help identify the related service procedure and component arrangement.
- Cab or operator-area component needs access: Operator-station procedures cover the enclosure, seat, belt, HVAC and associated service work.
- Attachment coupler requires repair: Loader coverage includes the attachment coupler and related loader systems.
Digital PDF Features
- Language: English
- Format: PDF
- Searchable: Quickly locate component names, groups and repair procedures
- Printable: Print individual procedures or pages for workshop use
- Zoomable: Enlarge illustrations and technical details on screen
- Easy Navigation: Structured technical sections make it easier to locate the required repair information
- Instant Access: Digital delivery eliminates waiting for a physical manual
Important Serial-Number Check
John Deere produced multiple technical-manual editions for the 330G and 332G. TM14067X19 is associated with the E314413–387237 serial range, while other publications cover different production ranges. For example, an earlier repair publication, TM14063X19, is associated with machines from F300253 onward. Confirming the PIN/serial number is therefore an important step before purchasing the manual.
Frequently Asked Questions
What is John Deere TM14067X19?
TM14067X19 is the Repair Technical Manual for John Deere 330G and 332G skid steer loaders in the specified E314413–387237 serial range.
Which machines does TM14067X19 cover?
The manual covers the John Deere 330G and 332G skid steer loaders with the applicable E314413 through 387237 serial coverage.
Does TM14067X19 cover hydraulic repairs?
Yes. The manual contains main hydraulic system and loader hydraulic repair information, including procedures relevant to component service.
Does this manual include engine removal information?
Yes. The engine section includes engine removal and installation procedures, with related auxiliary-system coverage.
Can I use TM14067X19 for a 330G with a different serial range?
Do not assume compatibility based only on the model name. John Deere issued different manuals for different production ranges, so the machine PIN or serial number should be checked against the manual coverage.
Does the manual cover both the 330G and 332G?
Yes. TM14067X19 is specifically identified for both John Deere 330G and 332G skid steer loaders within its applicable serial-number range.
Is TM14067X19 a repair manual or an operation manual?
TM14067X19 is a Repair Technical Manual. The related Operation and Test publication for this production range is TM14065X19.
Choose the Correct 330G / 332G Service Reference
For a John Deere 330G or 332G that falls within the E314413–387237 production range, TM14067X19 provides model-specific repair information covering the engine, drive components, axles, transmission, hydraulics, electrical system, loader, operator station, frame, and supporting systems. It is a practical digital reference for technicians who need to move from inspection to component-level repair with the correct machine information in front of them.
