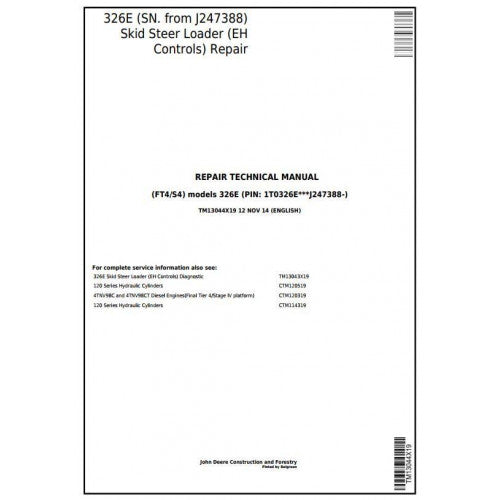

John Deere 326E Skid Steer Loader PDF Technical Repair Service Manual – TM13044X19

A hydraulic function that suddenly slows down, a drive system that loses pulling power, or an engine that requires removal can turn a routine 326E repair into a time-consuming diagnostic job. The John Deere 326E Skid Steer Loader Technical Repair Service Manual TM13044X19 is designed for that level of work, with system-specific information for the machine's EH controls, hydraulic systems, drivetrain, axles, engine, loader and supporting structures.

This publication is identified for the John Deere 326E Skid Steer Loader with EH (electro-hydraulic) controls, PIN 1T0326E___J247388 and later. It is a repair technical manual rather than an operator's guide, with sections covering powered wheels, axles and reduction gears, transmission, engine removal and installation, engine auxiliary systems, main hydraulics, loader hydraulics, attachment coupler and other workshop subjects.

John Deere 326E Machine Information

Machine Specification	326E Information
Manufacturer	John Deere
Model	326E
Machine Type	Skid Steer Loader
Control Configuration	EH / Electro-Hydraulic Controls
Applicable PIN	1T0326E___J247388 and later
Operating Weight	3,723 kg (8,200 lb) base machine
SAE Rated Operating Capacity	1,221 kg (2,690 lb)
Rated Operating Capacity with Counterweight	1,289 kg (2,840 lb)
Tipping Load	2,443 kg (5,380 lb)
Boom Breakout Force	2,270 kg (5,000 lb)
Bucket Breakout Force	3,519 kg (7,750 lb)
Overall Length Without Bucket	3.05 m (120 in)
Width Without Bucket	1.84 m (72.6 in)
Height to Top of ROPS	2.12 m (83.3 in)
Height to Hinge Pin	3.18 m (125.4 in)
Dump Angle at Full Lift	45°
Bucket Rollback at Ground Level	35°

The published John Deere E-Series specifications identify the 326E at 8,200 lb base operating weight, 2,690 lb SAE rated operating capacity, 5,380 lb tipping load, 5,000 lb boom breakout force and 7,750 lb bucket breakout force. John Deere also lists the 326E at 120 inches long without bucket, 72.6 inches wide and 83.3 inches high to the top of the ROPS.

Manual Identification

Manual Detail	Verified Information
Publication Number	TM13044X19
Manual Type	Repair Technical Manual
Model	John Deere 326E Skid Steer Loader
Control Type	EH / Electro-Hydraulic Controls
PIN Coverage	1T0326E___J247388 and later
Language	English
Format	PDF
Identified PDF Page Count	298 pages
Manual Purpose	Component repair, service, troubleshooting, removal, installation and technical reference

Current manual listings identify TM13044X19 as the 326E EH-control repair technical manual for PIN 1T0326E___J247388 and later. Available reproductions show different pagination, so the 298-page figure above refers to the specific PDF edition identified in current listings rather than claiming that every reproduction has identical pagination.

What Is Covered in TM13044X19?

Technical Section	Repair Coverage
General Information	Safety information, service practices and torque values
Wheels or Tracks	Powered wheels and fastenings
Axles & Suspension Systems	Drive axle housing and support, axle shafts, bearings and reduction gears
Transmission	Controls linkage, flywheel coupler and hydraulic-system-related service
Engine	Engine removal and installation procedures
Engine Auxiliary System	Cooling, intake, external exhaust and external fuel-supply systems
Frame / Supporting Structure	Frame installation and structural service information
Operator's Station	Operator enclosure, seat and seat belt, heating and air conditioning
Sheet Metal & Styling	Hood and engine-enclosure service
Safety & Convenience	Radio and related equipment
Main Hydraulic System	Hydraulic-system service information
Loader	Attachment coupler, loader frame and hydraulic system
Dealer-Fabricated Tools	Special service-tool information

The documented contents of TM13044X19 specifically identify these system groups, including powered wheels, axles, reduction gears, transmission, engine, cooling and fuel systems, operator station, main hydraulics and loader hydraulics.

326E Hydraulic and Loader Troubleshooting

The 326E's loader performance depends heavily on its hydraulic system. With a published 2,690 lb SAE rated operating capacity and 7,750 lb bucket breakout force, loss of hydraulic performance can have a noticeable effect on digging, loading and attachment work.

When the loader becomes slow, the bucket does not develop its normal breakout force, or an attachment responds inconsistently, the problem should not automatically be attributed to a failed cylinder. Hydraulic pump performance, valves, pressure, circuit condition and the affected actuator may all need to be considered.

• Slow lift-arm movement: use the main hydraulic and loader-system information to investigate the affected circuit.
• Weak bucket breakout: examine hydraulic performance and loader components before replacing the bucket cylinder.
• Attachment functions are weak: trace the loader hydraulic system and attachment-coupler circuit.
• Hydraulic component requires removal: follow the relevant component service procedure before dismantling the system.
• Loader operates differently under load: compare the symptom with the applicable hydraulic-system information and specifications.

Drive Axles, Bearings and Reduction Gears

The 326E is a wheeled skid steer, so its ground-drive system deserves different diagnostic attention from the track system used on the corresponding compact track loaders in the E-Series family. TM13044X19 includes dedicated information for powered wheels and fastenings as well as the drive axle housing and support, axle shafts, bearings and reduction gears.

This makes the manual useful when a machine develops abnormal wheel movement, drivetrain noise, excessive play, bearing wear, reduction-gear problems or other drive-related symptoms. Having the axle and reduction-gear information available before disassembly can also help establish the repair sequence and required service tools.

Transmission and Flywheel Coupler Service

The transmission section covers the controls linkage, flywheel coupler and hydraulic system. This is important when a drive complaint appears to originate somewhere between the engine and the final drive system.

Rather than treating every travel problem as a hydraulic fault, the manual allows the technician to examine the mechanical and hydraulic relationships within the transmission-related system and determine which area requires further inspection.

Engine Removal and Auxiliary Systems

TM13044X19 includes dedicated engine removal and installation information. That becomes particularly useful when engine access or major repair requires the power unit to be separated from the loader rather than serviced entirely in place.

The Engine Auxiliary System section expands the coverage into cooling, intake, external exhaust and external fuel-supply systems. These areas are relevant when an engine problem presents as overheating, restricted intake, exhaust concerns or fuel-supply difficulties.

EH Controls and System-Level Repair

This publication is specifically identified for the EH-control version of the 326E. The distinction is important because John Deere produced separate technical documentation for different control configurations and PIN ranges. Using the wrong publication can result in procedures or component information that do not match the machine.

The repair manual should therefore be matched against the machine's PIN before using its component procedures. For TM13044X19, the applicable listing identifies 1T0326E___J247388 and later.

Frame, Operator Station and HVAC Service

Repair work on an older 326E does not necessarily stay around the loader arms and hydraulic pump. TM13044X19 also addresses the frame or supporting structure, operator enclosure, seat and seat belt, heating and air conditioning, hood/engine enclosure and related sheet-metal components.

This broader coverage makes the publication useful for planned restoration and maintenance work as well as repairs caused by an immediate machine fault.

Technical Information Before You Start the Repair

One of the useful characteristics of John Deere's repair-manual structure is that individual service groups place important technical information close to the procedures where it is needed. TM13044X19 includes torque values, required service equipment, tools, materials, service parts information, specifications and wear-related references within its repair organization.

For a technician, this can make a difference before a component is removed: the repair can be planned around the correct tools, specifications and service sequence rather than discovering those requirements halfway through disassembly.

Digital PDF Features

• Format: PDF
• Language: English
• Publication: TM13044X19
• Identified edition: 298 pages
• Machine: John Deere 326E Skid Steer Loader
• Configuration: EH Controls
• Searchable digital reference for locating technical subjects.
• Zoom capability for examining technical illustrations and component details.
• Printable pages for workshop reference.
• Useful for component removal, installation, inspection, repair and reassembly.

Frequently Asked Questions

What machine does TM13044X19 cover?

TM13044X19 is the repair technical manual for the John Deere 326E Skid Steer Loader with EH Controls.

What PIN range is covered?

The identified coverage is PIN 1T0326E___J247388 and later.

Is TM13044X19 an operator manual?

No. It is a Repair Technical Manual intended for service, troubleshooting, component repair, removal, installation and related workshop work.

Does the manual cover the hydraulic system?

Yes. TM13044X19 includes a dedicated Main Hydraulic System section as well as hydraulic information within the Loader section.

Does it cover the loader attachment coupler?

Yes. The Loader section specifically includes the Attachment Coupler, along with the loader frame and hydraulic system.

Does the 326E manual cover axle and reduction-gear repairs?

Yes. The Axles and Suspension Systems section includes the drive axle housing and support, axle shafts, bearings and reduction gears.

Can TM13044X19 be used for engine removal?

Yes. Engine removal and installation are specifically included in the Engine section.

Does it include cooling and fuel-system information?

Yes. The Engine Auxiliary System section covers cooling, intake, external exhaust and external fuel-supply systems.

Does the manual cover heating and air conditioning?

Yes. Heating and air conditioning are included within the Operator's Station service information.

How many pages are in the TM13044X19 PDF?

The specific PDF edition identified for this listing is 298 pages. Other reproductions show different page counts, so pagination should be treated as edition-specific.

What is the John Deere 326E rated operating capacity?

John Deere's published E-Series specification lists the 326E at 2,690 lb (1,221 kg) SAE rated operating capacity, increasing to 2,840 lb with the specified counterweight configuration.

What is the 326E tipping load?

The published John Deere specification lists a 5,380 lb (2,443 kg) tipping load.

John Deere 326E Skid Steer Repair Manual PDF – TM13044X19

The John Deere 326E was built for demanding loading and material-handling work, with a 2,690 lb rated operating capacity, 7,750 lb bucket breakout force and an 8,200 lb base operating weight. Those figures also explain why service work needs to account for more than the visible loader components.

TM13044X19 brings together the technical areas required for deeper 326E service: powered wheels, axles, bearings and reduction gears, transmission, engine removal, cooling and fuel systems, frame, operator station, main hydraulics, loader hydraulics and attachment-coupler service.

For a John Deere 326E with EH controls and PIN 1T0326E___J247388 or later, this technical repair manual provides a focused workshop reference for diagnosing faults, planning component work, carrying out maintenance and completing mechanical and hydraulic repairs with model-specific information.
