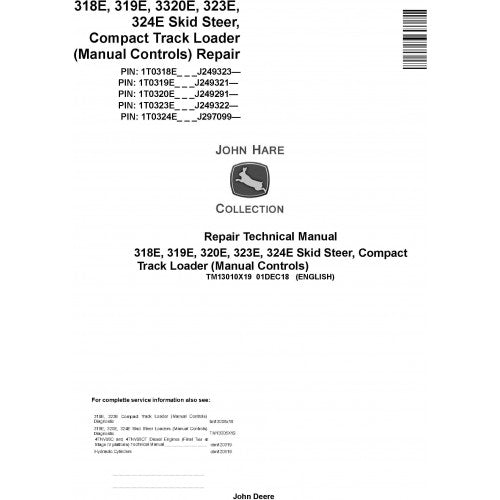

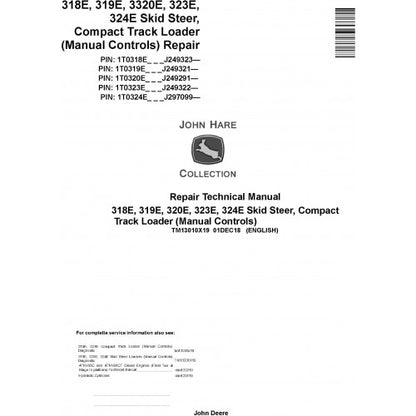

John Deere 318E, 319E, 320E, 323E, 324E Compact Loader Pdf Technical Repair Service Manual TM13010X19
John Deere 318E, 319E, 320E, 323E, 324E Compact Loader Pdf Technical Repair Service Manual TM13010X19
⭐⭐⭐⭐⭐ 50+ Reviews
Couldn't load pickup availability
John Deere 318E, 319E, 320E, 323E, 324E Compact Loader Pdf Technical Repair Service Manual - TM13010X19
When a John Deere E-Series compact loader needs a hydrostatic drive repair, axle work, hydraulic service, engine removal, or loader component rebuild, TM13010X19 gives you the hands-on repair information for the job. This manual covers the 318E, 319E, 320E, 323E and 324E machines with manual controls, including the applicable serial-number ranges, and is organized around actual component removal, inspection, repair, adjustment and reassembly.
Manual Information
| Models | John Deere 318E, 319E, 320E, 323E, 324E |
|---|---|
| Manual Number | TM13010X19 |
| Control Type | Manual Controls |
| 318E PIN | 1T0318E___J249323– |
| 319E PIN | 1T0319E___J249321– |
| 320E PIN | 1T0320E___J249291– |
| 323E PIN | 1T0323E___J249322– |
| 324E PIN | 1T0324E___J297099– |
| Document Type | Technical Repair Manual |
| Language | English |
| Format | |
| Page Count | Digital reproductions vary; 631 pages is listed for one identified edition |
What You Can Repair With TM13010X19
This manual is aimed at the mechanical side of servicing. If a component has to come off the machine, be opened for inspection, repaired, adjusted and installed again, the relevant section provides the workshop procedure and illustrations.
- Wheels and tracks: powered wheels, fasteners and track-system service for the applicable loader configuration.
- Axles and suspension: axle housing, supports, axle shafts, bearings, reduction gears and related drivetrain components.
- Transmission and hydrostatic drive: control linkage, flywheel coupler, hydraulic system, hydrostatic motors, park brakes, gear cases and two-speed drive components where equipped.
- Engine: engine removal and installation procedures for major service work.
- Engine auxiliary systems: cooling, intake, external exhaust and fuel-supply components.
- Main hydraulics: hydraulic system service, start-up procedures and related hydraulic components.
- Loader: attachment coupler, control linkage, loader frame and hydraulic components.
- Operator station: enclosure, seat and seat belt, heating and air conditioning, and related operator-station service.
318E, 319E, 320E, 323E & 324E Information
| Machine Type | Skid Steer Loader / Compact Track Loader, depending on model |
|---|---|
| Engine Family | Yanmar diesel configurations vary by model and emissions specification |
| Hydrostatic Drive | Hydrostatic motors with integrated park-brake and gear-case components |
| Hydraulic System | Loader and auxiliary hydraulic circuits |
| Control Configuration | Manual controls |
324E Reference Specifications
| Net Engine Power | 52.5 kW (70 hp) at 2,500 rpm |
|---|---|
| Gross Rated Power | 54.8 kW (74 hp) |
| Engine Displacement | 3.3 L |
| Rated Operating Capacity | 1,221 kg (2,690 lb.) |
| Base Operating Weight | 3,405 kg (7,500 lb.) |
| Standard Hydraulic Flow | 79 L/min (21 gpm) |
| High-Flow Option | 110 L/min (29 gpm) |
| System Pressure at Couplers | 23,787 kPa (3,450 psi) |
| Fuel Capacity | 76 L (20 gal.) |
Hydrostatic Drive Repair Is a Major Part of This Manual
One of the more valuable sections for these compact loaders is the hydrostatic drive coverage. TM13010X19 includes procedures for hydrostatic motor and park-brake removal, disassembly, inspection and assembly, along with gear-case service and two-speed configurations where applicable. That makes the manual useful when the loader has a drive problem that cannot be resolved through routine adjustment alone.
Loader & Hydraulic Service
The loader section covers the attachment coupler, control linkage, loader frame and hydraulic system. This is useful when repairing a leaking cylinder, working on the loader linkage, servicing an attachment coupler, or carrying out hydraulic component work. The manual also includes hydrostatic and hydraulic start-up procedures that are important after system repairs.
PDF Manual Features
- English-language John Deere E-Series repair manual
- Searchable PDF format
- Detailed repair illustrations and component views
- Hydrostatic motor and park-brake repair procedures
- Hydraulic and loader service information
- Torque values and service specifications
- Removal, disassembly, inspection and assembly procedures
- Printable for workshop use
- Zoom in/out for detailed component viewing
- Instant PDF access after purchase
- Easy to save and reference during repairs
- Lifetime access to the purchased manual
Frequently Asked Questions
Which machines are covered by TM13010X19?
The manual covers the 318E, 319E, 320E, 323E and 324E compact loader models with manual controls within the specified PIN ranges.
Does TM13010X19 cover hydrostatic drive repairs?
Yes. The transmission and hydraulic sections include hydrostatic motor, park-brake, gear-case and related drive-component removal, inspection, disassembly and assembly procedures.
Does the manual cover the loader hydraulics?
Yes. The main hydraulic system and loader sections provide service information for hydraulic components, loader functions, attachment coupler, control linkage and frame-related repairs.
Does it cover both skid steer and compact track loaders?
Yes. The model group includes 318E, 320E and 324E Skid Steer Loaders as well as 319E and 323E Compact Track Loaders.
Is TM13010X19 a diagnostic manual?
No. TM13010X19 is the Technical Repair Manual. Separate operation and test publications are used for detailed diagnostics and electrical troubleshooting on the applicable manual-control machines.
