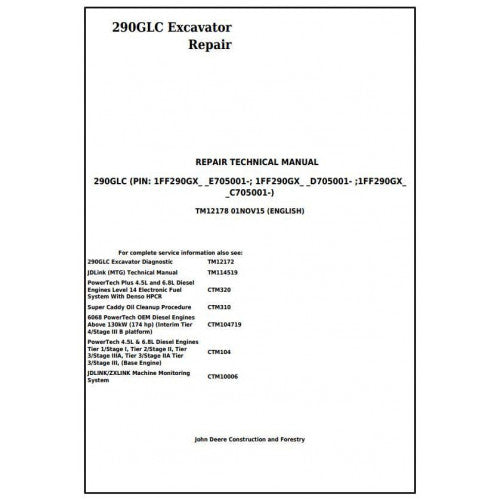

John Deere 290GLC Excavator Pdf Technical Repair Service Manual TM12178
John Deere 290GLC Excavator Pdf Technical Repair Service Manual TM12178
⭐⭐⭐⭐⭐ 50+ Reviews
Couldn't load pickup availability
John Deere 290GLC Excavator Pdf Technical Repair Service Manual - TM12178
When a John Deere 290GLC needs component-level repair, TM12178 gives you the workshop information needed to work through the job systematically. This technical repair manual covers the excavator's tracks, engine, supporting structure, hydraulic systems, swing mechanism, operator station, and attachment components, with repair procedures, torque information, illustrations, and service specifications.
Manual Details
| Machine | John Deere 290GLC Excavator |
|---|---|
| Publication Number | TM12178 |
| Publication Date | 01NOV15 |
| PIN Coverage | 1FF290GX__C705001-; 1FF290GX__D705001-; 1FF290GX__E705001- |
| Document Type | Technical Repair Manual |
| Language | English |
| Format |
Where TM12178 Helps During a Repair
This is a repair-focused manual rather than an operator guide. Its sections follow the machine from the undercarriage and engine through the excavator hydraulics and swing system, making it useful when a component has to be removed, inspected, rebuilt, adjusted, or installed again.
- Tracks and undercarriage: track system service and related removal, adjustment, and repair procedures.
- Axles and reduction components: axle shafts, bearings, reduction gears, and associated hydraulic components.
- Engine: engine removal and installation procedures plus related service information.
- Engine auxiliary systems: cooling, intake, external exhaust, and external fuel supply systems.
- Excavator hydraulics: hydraulic tank, control valves, pumps, cylinders, hoses, and boom, arm, and bucket circuits.
- Swing system: swing gearbox, swing bearing, center joint, swing motor, park brake, and related hydraulic valves.
- Operator station: enclosure, seat and restraint components, heating, and air conditioning.
- Dealer-fabricated tools: dedicated tool information for selected track, swing, pump, and component service operations.

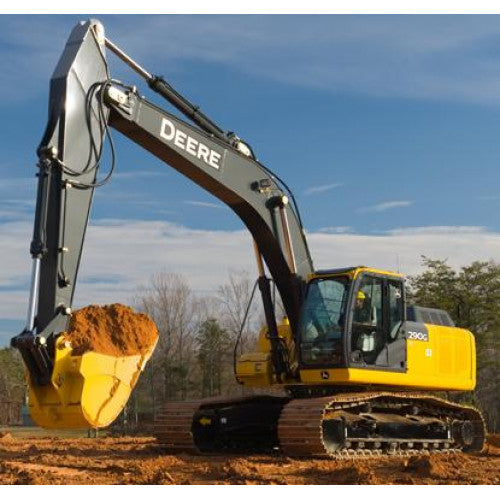

John Deere 290GLC Specifications
| Engine | John Deere PowerTech PVX 6.8 L, 6-cylinder turbocharged diesel |
|---|---|
| Net Power | Approximately 147 kW (197 hp) at 2,000 rpm |
| Operating Weight | 30,090 kg (66,338 lb), configuration shown with 800-mm shoes |
| Maximum Travel Speed | 5.5 km/h (3.4 mph) |
| Hydraulic Pump Flow | Up to 236 L/min (62.3 gpm) per main pump |
| Hydraulic System Capacity | 240 L (63 gal.) |
| Fuel Capacity | 500 L (132 gal.) |
| Ground Pressure | 41.6 kPa (6.04 psi) with 800-mm triple semi-grouser shoes |
| Swing Speed | 12.6 rpm |
| Swing Torque | 77,140 Nm (56,896 lb.-ft.) |
Working Range Reference
| Arm Configuration | 3.11 m (10 ft. 2 in.) | 3.75 m (12 ft. 4 in.) |
|---|---|---|
| Maximum Reach | 10.71 m (35 ft. 2 in.) | 11.27 m (37 ft.) |
| Maximum Digging Depth | 7.23 m (23 ft. 9 in.) | 7.88 m (25 ft. 10 in.) |
| Maximum Dumping Height | 7.31 m (24 ft.) | 7.52 m (24 ft. 8 in.) |
Practical Workshop Information
TM12178 becomes especially valuable when the repair involves more than replacing an external part. For example, a hydraulic cylinder can be removed and rebuilt, a swing gearbox can be serviced, a center joint can be disassembled, or track components can be worked on with the appropriate procedures and specifications close at hand. The manual also identifies specialized dealer-fabricated tools for several demanding repair operations.
PDF Manual Features
- English-language John Deere 290GLC repair information
- Searchable PDF format
- Detailed repair illustrations and component diagrams
- Printable for workshop reference
- Zoom in/out for close-up viewing of diagrams
- Instant PDF access after purchase
- Easy to save and reference when needed
- Lifetime access to the purchased manual
Frequently Asked Questions
What PIN numbers does TM12178 cover?
TM12178 covers John Deere 290GLC machines beginning with PIN prefixes 1FF290GX__C705001-, 1FF290GX__D705001-, and 1FF290GX__E705001-.
Is TM12178 a repair manual?
Yes. TM12178 is the Technical Repair Manual for the 290GLC. It focuses on component removal, disassembly, inspection, repair, installation, and adjustment procedures.
Does the manual cover the 290GLC hydraulic system?
Yes. The excavator section includes hydraulic system repair information covering components such as the hydraulic tank, control valves, cylinders, and related circuits.
Does it include swing gearbox and swing motor repairs?
Yes. The swing section covers the mechanical drive elements and hydraulic system, including the swing gearbox, swing bearing, center joint, swing motor, park brake, and related valves.
Is TM12178 the same as the 290GLC diagnostic manual?
No. TM12178 is the repair technical manual. The separate 290GLC operation and test publication is intended for diagnostics, operational checks, and system testing.
