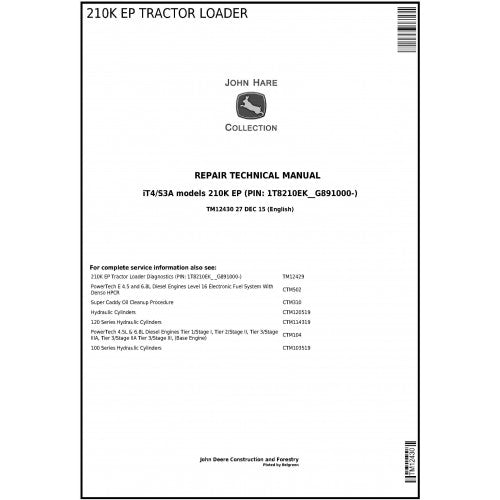

John Deere 210K EP Tractor Loader Pdf Technical Repair Service Manual TM12430

John Deere 210K EP Tractor Loader Technical Repair Service Manual TM12430

When a John Deere 210K EP Tractor Loader needs a transmission overhaul, MFWD axle repair, hydraulic component replacement, steering work, or loader cylinder service, TM12430 provides the component-level procedures needed for the job. This Technical Repair Manual is identified for machines with PIN 1T8210EK__G891000 and later and is focused on actual workshop repair rather than general operation.

Manual Identification

Detail	Information
Machine	John Deere 210K EP Tractor Loader
Publication Number	TM12430
PIN Coverage	1T8210EK__G891000 and later
Manual Type	Technical Repair Manual
Language	English
Format	PDF
Page Count	Digital reproductions vary by edition

Repair Sections Inside TM12430

The manual follows the machine from its running gear through the transmission, engine, steering, brakes and loader hydraulics. Procedures include removal and installation, disassembly, assembly, inspection, adjustment and service specifications.

• Wheels and axles: wheel assemblies, drive shafts, U-joints, MFWD axle, differentials, axle shafts, bearings and reduction gears.
• Transmission: transmission removal, controls, power-shift clutch packs, gears, shafts, MFWD clutch and transmission charge pump.
• Engine: engine removal and installation information for the 210K EP power unit.
• Engine auxiliary systems: cold-weather starting, cooling, speed controls, intake, exhaust and external fuel supply.
• Torque converter: turbine, gears and shaft service with removal and installation procedures.
• Steering: steering columns, steering valve and MFWD axle steering cylinder service.
• Service and parking brakes: brake discs, pressure plates, hydraulic brake components and bleeding procedures.
• Main hydraulics: hydraulic pump, reservoir, oil coolers, filters, control valves and related hydraulic components.
• Loader: boom, bucket, attachment coupler, control linkage, auxiliary manifold and loader cylinders.

210K EP Machine Specifications

Specification	210K EP
Engine	John Deere PowerTech E 4.5 L turbocharged diesel
Net Peak Power	52 kW (70 hp) at 2,000 rpm
Net Peak Torque	315 N·m (232 lb-ft) at 1,300 rpm
Transmission	4-speed full PowerShift with hydraulic reverser
Drive	Mechanical front-wheel drive (MFWD)
Emission Standard	EPA Interim Tier 4 / EU Stage IIIB
Cooling	Suction-type fan

Transmission, Axle & Loader Repairs

TM12430 becomes especially valuable when the repair involves components that cannot be serviced by routine maintenance alone. The transmission section goes into clutch-pack removal and assembly, transmission case work, MFWD clutch service and charge-pump repair. The axle section covers MFWD disassembly, differential service, rear axle work and gear-contact checks.

At the front of the machine, the loader section covers boom and bucket removal, attachment coupler service, loader control linkage, auxiliary hydraulic components, boom cylinders and bucket cylinders. Cylinder procedures include disassembly and assembly, making the manual useful for rebuilding rather than simply replacing complete assemblies.

Hydraulic System Service

The hydraulic section includes procedures for removing and installing the hydraulic pump, servicing the reservoir, oil coolers and filters, and working on the main control valve. The valve procedures extend into individual sections such as the inlet, priority, auxiliary, bucket, boom and hitch sections, depending on configuration.

PDF Features

• English-language technical repair manual
• Searchable PDF format
• Organized sections and bookmarked navigation
• Detailed repair illustrations and component views
• Removal, installation, disassembly and assembly procedures
• Torque values, specifications and service information
• Transmission, MFWD and hydraulic repair coverage
• Loader boom, bucket, coupler and cylinder procedures
• Zoom in/out for detailed illustrations
• Printable workshop reference
• Instant digital access after purchase

Confirm Your PIN Before Ordering

TM12430 is identified for the John Deere 210K EP with PIN 1T8210EK__G891000 and later. It should not be confused with the separate 210K publication family, which uses different manual numbers and PIN coverage. Checking the PIN plate on the machine is the best way to confirm the correct repair edition.

Frequently Asked Questions

What machines does TM12430 cover?

TM12430 is the Technical Repair Manual for the John Deere 210K EP Tractor Loader, identified for PIN 1T8210EK__G891000 and later.

Does TM12430 cover the transmission?

Yes. It includes transmission removal and installation, power-shift clutch packs, gears and shafts, MFWD clutch service, transmission hydraulics and charge-pump procedures.

Does the manual include MFWD axle repair?

Yes. The axle section includes MFWD axle removal, disassembly and assembly, differential service, axle shafts, bearings and reduction gears.

Can I use this manual for loader hydraulic repairs?

Yes. TM12430 includes the main hydraulic system as well as loader boom, bucket, coupler, auxiliary hydraulic components and loader cylinder service procedures.

Is TM12430 the diagnostic manual?

No. TM12430 is the Technical Repair Manual. The companion TM12429 covers operation, diagnostics and testing for the 210K EP Tractor Loader.
