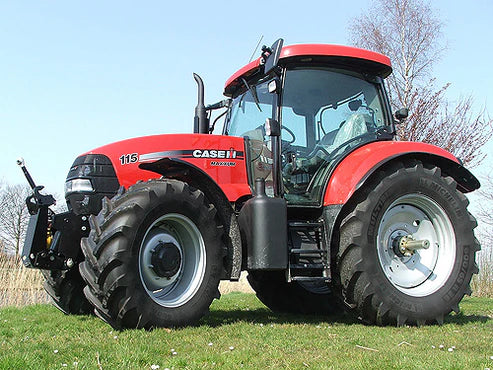

Case IH Maxxum 115 Tractor Repair & Service Manual
The Case IH Maxxum 115 combines a high-output diesel engine with electronically managed transmission, hydraulic, PTO, steering, and implement systems. When a repair moves beyond routine maintenance, having service information for the correct Maxxum configuration helps prevent unnecessary disassembly and makes it easier to work through the affected system methodically.
This Case IH Maxxum 115 Tractor Repair and Service Manual provides workshop-oriented information for servicing and repairing the tractor's major mechanical, hydraulic, electrical, transmission, axle, PTO, steering, braking, and cab systems. The identified Tier 4B (Final) publication is Case IH part number 47938724, 1st Edition English, October 2015. It covers the Maxxum 115 along with several related Maxxum models and configurations.
Manual Identification
| Specification | Details |
|---|---|
| Manufacturer | Case IH |
| Model | Maxxum 115 Tractor |
| Manual Type | Repair & Service Manual |
| Tier | Tier 4B (Final) |
| Part Number | 47938724 |
| Edition | 1st Edition |
| Publication Date | October 2015 |
| Language | English |
| Format |
One Manual for the Major Tractor Systems
Rather than concentrating on only the engine or transmission, the service publication is arranged around the complete tractor. This is useful because a problem that initially appears mechanical can involve hydraulics, electronic controls, lubrication, or another connected system.
| System | Service Coverage |
|---|---|
| Engine | Engine-related service and repair information |
| Clutch | Clutch components and service procedures |
| Transmission | Transmission system service and repair |
| Four-Wheel Drive | 4WD system and associated components |
| Front Axle | Front axle, differential and related components |
| Rear Axle | Rear axle and differential service |
| PTO | Power take-off system service |
| Brakes & Controls | Brake and control-system information |
| Hydraulic System | Hydraulic power, valves, circuits and components |
| Hitches & Implement Couplings | Three-point hitch, drawbar and implement connections |
| Steering | Steering system service |
| Wheels | Wheel and related service information |
| Cab Climate Control | Heating and air-conditioning system |
| Electrical System | Electrical and electronic system service |
| Platform & Cab | Operator station, bodywork and related components |
Maxxum 115 Configuration Information
The Tier 4B (Final) publication identifies several Maxxum variants within the same service manual. For the North American Maxxum 115, the indexed publication information identifies engine configuration F4DFE4134*B006. The same publication also lists the Maxxum 115 Multicontroller and Maxxum CVT 115 as separate configurations.
This distinction is important when using transmission, hydraulic, electrical, or control-system procedures. The model name alone does not necessarily identify the exact drivetrain configuration.
Engine Service
The engine is the starting point for many tractor performance complaints, but symptoms such as poor power, difficult starting, overheating, or unusual operating behavior can involve several supporting systems. The manual provides engine service information together with the related systems required to maintain and repair the tractor.
For deeper service work, the manual can be used as a reference when dealing with engine components, fuel-system service, cooling-system work, lubrication, exhaust-related components, and the associated electrical controls.
Transmission and Driveline Repairs
Transmission problems can present themselves as poor shifting, abnormal drive response, difficulty selecting a range, or loss of expected tractor performance. The service manual includes dedicated transmission coverage so the technician can investigate the drivetrain using information applicable to the Maxxum platform.
The publication also covers four-wheel drive, front axle, rear axle, and related driveline systems. This is useful when a repair involves differential components, axle assemblies, drive components, or 4WD engagement.
Hydraulic System & Implement Performance
Hydraulic performance is critical when the Maxxum 115 is operating loaders, three-point implements, remote hydraulic functions, or other equipment. A slow implement, weak hydraulic response, or inconsistent remote-valve operation may result from several different causes.
The hydraulic-system section provides information for investigating the hydraulic power system, valves, circuits, and associated components. The indexed manual contents specifically identify hydraulic coverage for closed-center mechanical remote valves, electro-hydraulic remote valves, and open-center mechanical remote valves.
PTO, Hitch and Implement Systems
The Maxxum 115 is designed to work with a wide range of agricultural implements, making the PTO and rear implement systems important service areas. The manual includes dedicated coverage for the PTO, hitches, drawbars, and implement couplings.
This is useful when a PTO problem, hitch issue, implement connection fault, or related hydraulic function requires more than an operating adjustment.
Steering and Brake Service
Steering and braking systems require careful inspection because performance changes can affect machine control and field operation. The manual provides dedicated sections for both areas, allowing technicians to investigate the relevant components rather than treating every symptom as a generic hydraulic fault.
- Steering-system components
- Brake-system service
- Brake and control components
- Related hydraulic functions
- Component inspection and repair procedures
Electrical and Electronic Systems
Modern Maxxum tractors use electrical and electronic controls throughout the engine, transmission, hydraulic, PTO, operator-control, and monitoring systems. A fault may therefore originate from a sensor, switch, wiring circuit, controller, actuator, or power supply.
The electrical-system section provides a technical reference for investigating these components and is especially useful when a mechanical symptom is accompanied by an electrical warning or intermittent system behavior.
Cab, Platform and Climate-Control Service
Service work is not limited to the tractor's drivetrain. The publication also covers the cab climate-control system and platform/cab-related components. This can be useful when repairs require access to the operator station, cab equipment, heating, air conditioning, or bodywork.
Practical Maxxum 115 Repair Situations
- Hydraulic remotes respond slowly: Use the hydraulic-system information to investigate the applicable valve and hydraulic circuit before replacing major components.
- PTO does not engage correctly: Refer to the dedicated PTO service information and associated controls.
- Tractor develops a transmission problem: Use the transmission section together with the applicable configuration information before dismantling the drivetrain.
- 4WD or axle requires service: The dedicated four-wheel-drive and axle sections provide the appropriate mechanical reference.
- Steering performance changes: Use the steering and associated hydraulic information to investigate the affected system.
- Electrical fault appears intermittently: Check the electrical-system information and related components instead of repeatedly replacing sensors or controllers.
- Engine requires major service: Use the engine and supporting-system information when planning component removal or repair.
- Cab HVAC stops operating correctly: The climate-control section provides a dedicated reference for heating and air-conditioning service.
Technical Contents at a Glance
| Area | Included Information |
|---|---|
| Introduction | Manual organization, safety and basic workshop information |
| Hydraulic / Pneumatic / Electrical / Electronic Systems | Hydraulic power systems, valves and electronic components |
| Engine | Engine service and related systems |
| Clutch | Clutch system service |
| Transmission | Transmission repair and service information |
| 4WD | Four-wheel-drive system |
| Axles | Front and rear axle service |
| PTO | Power take-off system |
| Brakes | Brake and control systems |
| Hydraulics | Hydraulic power and implement systems |
| Steering | Steering-system service |
| Wheels | Wheel-related service information |
| Climate Control | Heating and air-conditioning systems |
| Electrical | Electrical and electronic system service |
| Cab / Platform | Operator station, cab and bodywork |
Important Manual-Configuration Check
Case IH produced several Maxxum 115 configurations, including standard Maxxum, Multicontroller, and CVX/CVT versions. There are also earlier Tier 3 publications and later Stage IV service publications. For example, an earlier Maxxum 115 service publication is identified as 84276322ANA from November 2010, while a later Stage IV publication uses 47938715.
If the tractor is a Tier 4B (Final) machine, the 47938724 publication is the relevant edition identified for the Maxxum 115 group. If the tractor is an earlier or later emissions/configuration version, the correct manual may be different.
Digital PDF Features
- Language: English
- Format: PDF
- Searchable: Quickly locate system names, components and repair procedures
- Zoomable: Enlarge diagrams and technical illustrations for closer inspection
- Printable: Print selected procedures for workshop use
- System organized: Major tractor systems are separated into dedicated technical sections
- Convenient digital reference: Useful in the workshop or during field service
- Broad service coverage: Engine, transmission, hydraulics, PTO, axles, steering, brakes, electrical and cab systems
Frequently Asked Questions
What is the Case IH Maxxum 115 service manual?
It is a technical repair and service reference covering the Case IH Maxxum 115 tractor and its major mechanical, hydraulic, electrical, transmission, PTO, axle, steering, brake and cab systems.
What is the part number for the Tier 4B Maxxum 115 service manual?
The identified Tier 4B (Final) 1st Edition English publication is 47938724, dated October 2015.
Does the manual cover the Maxxum 115 transmission?
Yes. Transmission service is one of the major technical sections. The exact procedure should be matched to the tractor's transmission configuration.
Does this manual cover hydraulic repairs?
Yes. Hydraulic-system coverage includes the primary hydraulic power system and different remote-valve configurations.
Does it include PTO and three-point hitch information?
Yes. The publication includes PTO as well as hitches, drawbars and implement couplings.
Does the manual cover electrical troubleshooting?
Yes. Electrical and electronic systems are included as a dedicated service area.
Is this manual for the CVX/CVT Maxxum 115?
The Tier 4B publication 47938724 includes the Maxxum CVT 115 as well as the standard Maxxum 115 and Multicontroller versions. The transmission-specific procedures should be matched to the tractor configuration.
Can this manual be used for every year of the Maxxum 115?
No. Maxxum 115 tractors were produced with different emissions levels and configurations, and different service publications apply to different production periods. Verify the tractor's identification and configuration before purchasing.
A Complete Workshop Reference for the Maxxum 115
The Case IH Maxxum 115 Tractor Repair and Service Manual provides a broad technical reference for the systems that keep the tractor working in demanding agricultural conditions. From engine and transmission repairs to hydraulic troubleshooting, PTO service, axle work, steering, brakes, electrical systems, and cab climate control, the manual is structured to support real workshop repair rather than basic operator-level maintenance.
For the Tier 4B (Final) Maxxum 115, the identified 47938724 publication brings these major systems together in one service reference. Always verify the tractor's exact model, transmission configuration, emissions level, and identification information before using a procedure.
