Case IH 1470 Traction King Tractor Pdf Repair and Service Manual

Case IH 1470 Traction King Tractor Pdf Repair and Service Manual

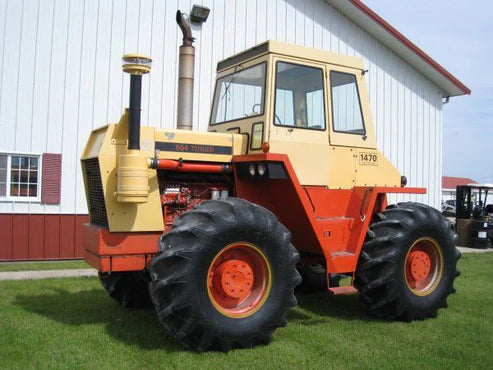

The Case IH 1470 Traction King is a heavy 4WD tractor, and repairs on an older machine often require accurate specifications rather than trial-and-error adjustments. This service manual brings together the technical information needed to diagnose, disassemble, inspect, repair, adjust, and reassemble the major systems of the 1470.

With dedicated sections for the 504 cubic-inch diesel engine, fuel system, hydraulics, steering, 8-speed transmission, traction clutch, independent PTO, axles, brakes, and electrical system, it is a practical reference for owners and technicians working on the tractor in the workshop.

Manual Identification

Machine	Case 1470 Traction King
Manual Type	Service and Repair Manual
Manual Number	9-85831
Language	English
Format	PDF
Pages	373 pages
Coverage	Case 1470 Traction King Tractor

The 9-85831 publication is consistently identified with the Case 1470 Traction King and a 373-page service manual edition. The original-style table of contents confirms sections covering the engine, fuel system, hydraulics, steering, power train, brakes, and electrical system.

Engine and Fuel System Service

The engine section covers cylinder-head and valve work, engine block assemblies, cooling, and lubrication-related service. The fuel section goes further into the fuel system and filters, including Robert Bosch fuel injection pumps and Roosa Master fuel injectors.

The 1470 uses a 504 cubic-inch, six-cylinder diesel rated at approximately 2,000 rpm. The manual provides the measurements and adjustment information needed when investigating fuel delivery, valve-train, cooling, or engine performance problems.

Hydraulic and Steering Repairs

Hydraulic work is covered from the three-point hitch and hydraulic control valve through the hydraulic pump and associated components. The steering section addresses the steering flow divider, front and rear steering valves and cylinders, and steering axle adjustment.

This is particularly useful when a Traction King develops inconsistent steering response, hydraulic pressure problems, poor three-point performance, or a hydraulic function that will not respond correctly.

Power Train, PTO and Brakes

• 8-speed transmission service
• 15-inch traction clutch
• Independent PTO
• Differentials and drive shafts
• Planetaries and axles
• Caliper brake systems
• Brake master cylinder and brake disc service
• Parking brake components

The manual also distinguishes brake information by serial-number production changes where applicable, which is important when servicing an older 1470 rather than assuming every tractor uses identical components.

Selected Technical Specifications

Specification	Reference Value
Engine displacement	504 cu in (8.3 L)
Cylinders	6
Engine rated speed	2,000 rpm
Cooling system capacity	40 U.S. qt
Remote hydraulic relief pressure	2,050–2,250 psi
Hot tappet clearance	0.020 in
Wheel lug nut torque	250 ft-lb

These values are drawn from the service-manual specifications and should be used together with the applicable procedure and component tolerances rather than as standalone adjustment instructions.

Electrical Information Included

The electrical section includes wiring information for the battery, alternator, voltage regulator, starter motor, and lighting circuits. Having these diagrams alongside the mechanical repair sections is helpful when an older 1470 has starting, charging, or lighting faults.

What Makes This Manual Useful?

For a tractor of this age, the most useful information is often buried in specifications, tolerances, adjustment procedures, and component illustrations. This manual provides those details in one searchable reference, helping you check measurements before rebuilding a component and follow the correct sequence during reassembly.

• Detailed repair and service procedures
• Engine and fuel-system information
• Hydraulic system and three-point hitch service
• Steering valve and cylinder procedures
• Transmission and traction clutch information
• Independent PTO and axle service
• Brake repair information
• Wiring diagrams and electrical service
• Torque values and technical specifications
• Exploded technical illustrations and component views

PDF Manual Features

• English PDF format
• 373 pages of technical service information
• Searchable digital document
• Printable pages for workshop use
• Zoom in and out for diagrams and technical details
• Instant PDF access after purchase
• Easy viewing on computer, tablet, or phone
• Lifetime access to the purchased manual
• Fast and convenient download
• Helps reduce diagnostic time and unnecessary parts replacement

Frequently Asked Questions

What manual number covers the Case 1470 Traction King?

The service manual is identified as 9-85831.

What systems are covered?

The manual covers the engine, fuel system, hydraulics, steering, transmission, traction clutch, PTO, differentials, axles, brakes, and electrical system.

Does it include hydraulic information?

Yes. Hydraulic coverage includes the three-point hitch, hydraulic control valve and system, hydraulic pump, break-away couplings, and related components.

Does the manual include wiring diagrams?

Yes. The electrical section includes wiring information for the alternator, voltage regulator, starter, batteries, and lighting circuits.

Is the Case 1470 a 4WD tractor?

Yes. The 1470 Traction King is a four-wheel-drive tractor. Reference specifications list approximately 17,300 lb operating weight and 18.4x30 tires, although equipment configuration can affect actual specifications.

Is this manual useful for major repairs?

Yes. Its contents extend beyond routine maintenance into component disassembly, inspection, adjustment, repair, and reassembly for the major mechanical, hydraulic, powertrain, brake, and electrical systems.
