Bobcat Toolcat 5600 Utility Work Machine Pdf Repair and Service Manual (Pb no. 6902819)

Bobcat Toolcat 5600 Utility Work Machine Repair & Service Manual 6902819

The Bobcat Toolcat 5600 combines utility-vehicle mobility with hydraulic work-machine capability, so a fault in one area can quickly affect several functions. When the machine develops a hydrostatic drive problem, hydraulic fault, electrical issue, engine-service requirement, or axle concern, the correct serial-number-specific service information is far more useful than a generic repair guide.

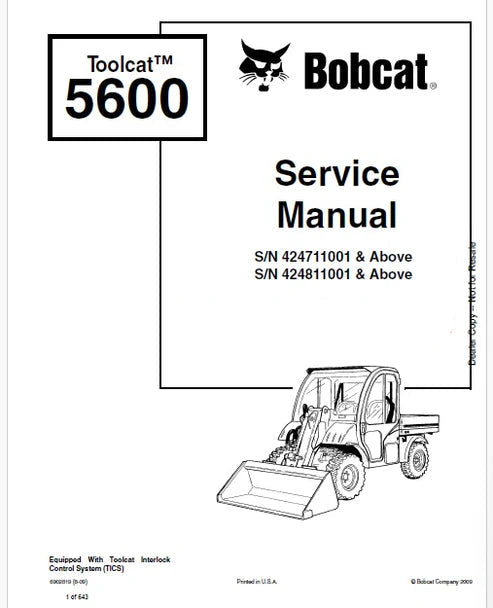

The Bobcat Toolcat 5600 Utility Work Machine Service Manual, Publication No. 6902819, provides workshop information for diagnosis, adjustment, component removal, disassembly, inspection, repair, and reassembly. This edition is identified as 6902819 (8-09) and covers S/N 424711001 & Above and S/N 424811001 & Above.

Manual Identification

Item	Details
Manufacturer	Bobcat
Machine	Toolcat 5600 Utility Work Machine
Manual Type	Service / Repair Manual
Publication Number	6902819
Edition	8-09
Serial Number Coverage	424711001 & Above; 424811001 & Above
Toolcat Control System	Toolcat Interlock Control System (TICS)
Language	English
Format	PDF
Pages	643
Digital File Size	Approximately 17.9 MB

What Is Inside the 6902819 Service Manual?

This manual is arranged around the systems a technician actually works on when servicing the Toolcat 5600. It begins with safety and machine-identification information and progresses into maintenance, hydraulics, hydrostatic drive, axles, electrical diagnostics, engine service, and other technical areas.

Technical Area	Service Coverage
Safety & Maintenance	Maintenance safety, lifting and blocking, support devices, cab access, transportation, towing and scheduled service
Hydraulic System	Hydraulic components, circuits, fittings, hoses and service procedures
Hydrostatic System	Hydrostatic drive components and related service information
Drive System	Driveline and drive-component repair information
Main Frame	Frame and structural component service
Electrical System & Analysis	Electrical components, system analysis and troubleshooting
Engine Service	Engine-related repair and service procedures
Specifications	Applicable service specifications and technical reference information

Toolcat 5600 Technical Reference

Machine Specification	Reference Information
Machine Type	Utility Work Machine
Fuel Tank Capacity	75.7 L
Cargo Box Bed Load Capacity	907 kg
Total Vehicle Rated Capacity	1,905 kg
Standard Auxiliary Hydraulic Flow	71.5 L/min
Auxiliary Hydraulic Pressure	206.84 bar
High-Flow Auxiliary Capacity	105.6 L/min
Overall Length	4,613 mm
Width	1,524 mm
Width with Bucket	1,575 mm
Height	2,057 mm

Hydraulic System Service

The hydraulic system is one of the most important areas of the Toolcat because it supplies the working functions and supports attachment operation. The 5600 specification identifies standard auxiliary flow of 71.5 L/min and an optional high-flow capacity of 105.6 L/min.

When an attachment operates slowly, a hydraulic function becomes weak, or a hose or fitting develops a leak, the service manual provides the system information needed to identify the relevant components and carry out the repair correctly.

The manual also includes information covering different fitting types, including O-ring flare, port-seal and Quick-Lok fittings. This is particularly useful when working on hydraulic lines where an incorrect fitting procedure can result in leakage or component damage.

Hydrostatic Drive and Driveline Repairs

The Toolcat's hydrostatic drive system is a critical part of its utility-vehicle design. A machine that moves inconsistently, loses drive performance, or develops unusual behavior during travel requires more than a simple inspection of the tires or controls.

Dedicated hydrostatic system and drive system sections provide a reference for technicians working on the components responsible for machine movement and power transmission.

• Hydrostatic system inspection and service
• Drive-system component repair
• Related hydraulic connections and circuits
• Axle and differential service information
• Component removal and reinstallation procedures

Electrical System & Analysis

The 5600 uses electronic control and electrical components to coordinate machine functions. Electrical troubleshooting can become time-consuming when a symptom is caused by a circuit, connection, switch, controller, or another component rather than a mechanical failure.

The Electrical System & Analysis section gives technicians a dedicated area for investigating electrical problems and servicing the applicable components. The manual is also associated with the Toolcat Interlock Control System (TICS), making the correct publication particularly useful when troubleshooting interlock-related machine behavior.

Engine Service and Maintenance

The manual includes an Engine Service section in addition to the scheduled maintenance information. This allows the document to be used when work goes beyond oil and filter changes and into actual engine-related servicing.

Maintenance coverage includes items such as the air cleaner, cooling system, fuel filter, fuel-system bleeding, engine lubrication, hydraulic/hydrostatic fluid and filter service, and related fluid specifications.

Maintenance Procedures Covered

• Air cleaner filter replacement
• Engine cooling-system inspection and coolant replacement
• Fuel-system servicing and removal of air from the fuel system
• Engine oil and filter replacement
• Hydraulic/hydrostatic fluid checks and replacement
• Hydraulic/hydrostatic filter replacement
• Reservoir breather service
• Front and rear axle/differential service
• Hydraulic hose and fitting service
• Machine lifting and blocking procedures
• Lift-arm support-device installation and removal
• Cargo-box support-device procedures

Real Workshop Problems This Manual Can Help With

• Attachment hydraulics are slow: Check the hydraulic-system information and applicable flow/pressure-related components before replacing major parts.
• Hydraulic fluid is leaking: Use the fitting, hose and hydraulic-system information to identify the correct service procedure.
• Toolcat has a drive problem: Work through the hydrostatic and drive-system sections rather than treating the problem as a simple engine fault.
• Machine will not operate because of an interlock condition: The TICS-related electrical information provides a useful starting point for diagnosis.
• Engine requires service: Use the dedicated engine-service section together with the applicable maintenance procedures.
• Electrical component fails intermittently: The electrical-system analysis section can help narrow the fault to the relevant circuit or component.
• Axle or differential needs service: The maintenance and drive-system information provides the appropriate technical reference.

Why Serial Number Matching Matters

Bobcat produced several Toolcat 5600 service-manual editions for different production ranges. The 6902819 publication is specifically identified for S/N 424711001 and above and S/N 424811001 and above.

This is important because later Toolcat 5600 publications use different manual numbers and may have different page counts or system coverage. The machine serial number should therefore be checked before purchasing rather than selecting a manual from the 5600 model name alone.

Digital PDF Features

• Language: English
• Format: PDF
• Pages: 643
• Searchable: Quickly locate components, procedures and technical terms
• Printable: Print selected procedures for workshop use
• Zoomable: Enlarge diagrams and technical illustrations on screen
• Wiring Information: Electrical system and analysis coverage
• Hydraulic Information: Hydraulic system and fitting procedures
• Convenient Access: Use the manual on a computer or compatible digital device while servicing the machine

Frequently Asked Questions

What is Bobcat manual 6902819?

6902819 is the Service Manual for the Bobcat Toolcat 5600 Utility Work Machine. It contains service, adjustment, diagnostic, disassembly, repair and reassembly information.

What serial numbers does Bobcat 6902819 cover?

This edition is identified for S/N 424711001 & Above and S/N 424811001 & Above.

How many pages are in the Toolcat 5600 6902819 manual?

The identified 8-09 edition contains 643 pages.

Does the manual cover the Toolcat hydraulic system?

Yes. Hydraulic-system service is a major section of the manual, including hydraulic components, fluid service, fittings, hoses and related procedures.

Does 6902819 include hydrostatic transmission information?

Yes. The manual has a dedicated Hydrostatic System section as well as a separate Drive System section.

Does the manual include electrical troubleshooting?

Yes. An Electrical System & Analysis section is included for electrical-system service and troubleshooting.

Does this manual cover TICS?

Yes. The applicable Toolcat 5600 publication is identified as being equipped with the Toolcat Interlock Control System (TICS).

Is 6902819 a parts manual?

No. 6902819 is a Service Manual. It is intended for servicing, troubleshooting, adjustment, repair, disassembly and reassembly rather than parts-number lookup.

A Complete Technical Reference for the Covered Toolcat 5600

For a Bobcat Toolcat 5600 within the 424711001 or 424811001-and-above serial ranges, publication 6902819 provides a practical repair reference across the machine's hydraulic, hydrostatic, drive, electrical, engine, frame and maintenance systems. Its 643 pages are organized to help a technician move from a machine symptom to the appropriate service procedure instead of relying on generic utility-vehicle repair information.

Verify the complete serial number on your Toolcat before ordering to ensure that 6902819 (8-09) is the correct service-manual edition for your machine.
