Bobcat TL470(X) Telescopic Handler Pdf Repair and Service Manual

Bobcat TL470(X) Telescopic Handler Pdf Repair and Service Manual

When a TL470(X) starts showing a hydraulic performance problem, boom movement becomes inconsistent, or the hydrostatic drive no longer responds as expected, guessing at the fault can quickly turn a service job into unnecessary component replacement. The Bobcat TL470(X) Telescopic Handler Repair and Service Manual is designed as a detailed technical reference for diagnosing, servicing, adjusting, removing, installing, and rebuilding the systems fitted to this series.

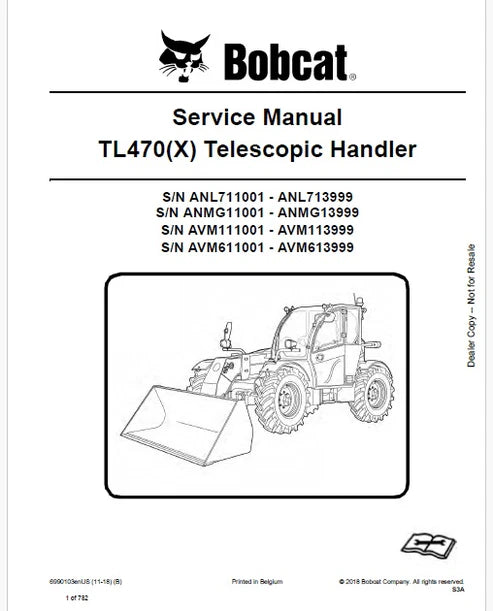

This edition is particularly useful for the specified ANL, ANMG, and AVM serial-number ranges. The manual is identified as Bobcat publication 6990103enUS (11-18) (B), dated November 2018, and contains 782 pages. It covers both the TL470 and TL470X telescopic handlers.

Machine Information – Bobcat TL470 / TL470X

Specification	TL470 / TL470X Information
Machine Type	Telescopic Handler
Model	Bobcat TL470 / TL470X
Maximum Rated Capacity	3,500 kg (7,716 lb)
Capacity at Maximum Height	3,000 kg (6,614 lb)
Capacity at Maximum Reach	1,500 kg (3,307 lb)
Maximum Lift Height	Approximately 6.96 m (22.8 ft)
Maximum Horizontal Reach	4.002 m (13.1 ft)
Unladen Operating Weight	Approximately 7,130 kg (15,719 lb)
Standard Hydraulic Flow	Approximately 100 L/min
Engine	Perkins 1104D-44TA, 4-cylinder diesel
Engine Displacement	4.40 L
Rated Engine Power	Approximately 74.5 kW (100 hp)
Maximum Torque	Approximately 410 Nm at 1,400 rpm
Transmission	Hydrostatic drive with electronic regulation
Main Drive	Hydrostatic motor with 2-speed gearbox
Standard Tyres	405/70x20

Why This TL470(X) Manual Is Useful During Actual Repairs

The TL470(X) combines a high-capacity telescopic boom with hydraulic work circuits, hydrostatic propulsion, electronic controls, and a turbocharged diesel engine. A fault in one system can therefore produce symptoms that look like a problem somewhere else. This is where model-specific service information becomes valuable.

• Boom movement is slow: hydraulic-system testing and component information can help narrow the fault to flow, pressure, valve, cylinder, or related components.
• Attachment functions lose performance: the hydraulic sections provide information for investigating auxiliary circuits, valves, couplers, and pressure-related problems.
• Machine struggles to travel: the hydrostatic and drive-system sections provide a starting point for examining the propulsion system rather than immediately replacing drive components.
• Electrical functions behave intermittently: the electrical analysis section helps technicians trace circuits and identify electrical-system faults.
• Engine performance changes under load: the engine-service section provides technical information for inspection and repair of the engine-related systems.
• Cab climate performance drops: the HVAC section addresses the heating, ventilation, and air-conditioning system.
• Components require removal or installation: illustrated procedures help identify the correct sequence and service points before dismantling major assemblies.

What the Bobcat TL470(X) Service Manual Covers

This is not simply an operating guide. Its organization follows the machine's major service systems, making it suitable for technicians working from an identified symptom toward inspection, testing, adjustment, repair, and reassembly.

Manual Section	Technical Coverage
Safety & Maintenance	Service precautions, maintenance procedures, lifting and blocking, and safe workshop practices
Hydraulic System	Hydraulic components, circuits, testing, removal, installation, adjustment, and troubleshooting
Hydrostatic System	Hydrostatic drive components, diagnostics, servicing, adjustment, and repair procedures
Drive System	Drive-related assemblies and service procedures
Mainframe	Structural and chassis-related components, inspection, removal, and installation
Electrical System & Analysis	Electrical circuits, component testing, troubleshooting, and system analysis
Engine Service	Engine-related maintenance, component service, repair, and adjustment information
HVAC	Heating, ventilation, air-conditioning components and service procedures
Specifications	Technical specifications and service reference data
Alphabetical Index	Faster location of components, procedures, and technical subjects

Manual Identification and Serial-Number Coverage

Correct serial-number matching matters with Bobcat equipment because component configurations and service information can vary between production groups. This listing is specifically associated with the following TL470(X) serial ranges:

• S/N ANL711001 – ANL713999
• S/N ANMG11001 – ANMG13999
• S/N AVM111001 – AVM113999
• S/N AVM611001 – AVM613999

Always compare the serial number on the machine with the coverage above before beginning a repair procedure.

Manual Specifications

Manual Detail	Information
Manual Type	Service, Repair & Workshop Manual
Applicable Models	Bobcat TL470 / TL470X
Publication Number	6990103enUS
Revision / Issue	11-18 (B), November 2018
Total Pages	782 pages
Language	English
Format	PDF
Document Structure	System-based service sections with specifications and alphabetical index

Technical Areas Worth Having at Hand

For a working TL470(X), the most useful parts of the manual are often the sections that let a technician move beyond visual inspection. Hydraulic and hydrostatic faults, for example, may require pressure or component checks before a failed part can be confirmed. Electrical complaints may similarly require circuit-level analysis rather than simply changing a sensor or switch.

The manual also becomes useful when a repair reaches the mechanical stage. Removal and installation instructions, component illustrations, adjustment information, specifications, and torque-related references can help reduce the risk of incorrect assembly after the failed component has been identified.

Digital Manual Features

• English-language PDF format
• Detailed service and repair information
• Useful for workshop, field-service, and maintenance reference
• Convenient digital access on compatible computers and mobile devices
• PDF pages can be enlarged for closer inspection of technical illustrations
• Printable for technicians who prefer a physical workshop reference
• Helps reduce time spent searching through unrelated model documentation
• Useful for planned maintenance as well as fault diagnosis and repair work

Frequently Asked Questions

Does this manual cover the Bobcat TL470X?

Yes. Publication 6990103enUS covers the Bobcat TL470 and TL470X telescopic handlers for the specified serial-number groups.

What serial numbers are covered by this TL470(X) manual?

This edition covers ANL711001–ANL713999, ANMG11001–ANMG13999, AVM111001–AVM113999, and AVM611001–AVM613999.

What type of information is included?

The manual includes service information for the hydraulic, hydrostatic, drive, mainframe, electrical, engine, and HVAC systems, along with specifications and an alphabetical index.

Is this the right manual for diagnosing hydraulic problems?

It is specifically structured with a dedicated hydraulic-system section containing technical service information useful when investigating hydraulic performance and component faults.

Can the manual be used for hydrostatic drive repairs?

Yes. The service documentation includes a dedicated hydrostatic-system section as well as drive-system information for troubleshooting and servicing the machine.

What engine is associated with the TL470 specification?

Published TL470 technical specifications identify the Perkins 1104D-44TA 4.40 L four-cylinder diesel engine, rated at approximately 74.5 kW (100 hp).

How much can the TL470 lift?

The published TL470 specification lists a maximum rated capacity of 3,500 kg, with capacity figures of approximately 3,000 kg at maximum height and 1,500 kg at maximum reach.

Is this an operator manual or a repair manual?

This listing is for the service and repair manual, publication 6990103enUS (11-18) (B), rather than simply an operator-focused manual.

Bobcat TL470(X) Repair Manual PDF – A Practical Workshop Reference

The value of this document is its connection to the actual TL470(X) architecture: a 3.5-tonne-class lifting system, approximately 7-tonne unladen machine, hydrostatic drive, high-flow hydraulic system, and Perkins diesel power unit. Instead of relying on generic telehandler repair information, technicians can work from documentation organized around the systems actually found on this Bobcat model family.

If your machine falls within the listed serial ranges, the Bobcat TL470(X) Telescopic Handler PDF Repair and Service Manual provides a practical technical reference for troubleshooting, component service, maintenance, adjustment, removal, installation, and repair.
