Bobcat T35130SL Telescopic Handler PDF Repair and Service Manual – 7268143enUS
A telescopic handler can develop a fault in one system while the symptom appears somewhere completely different. A slow boom, uneven travel, hydraulic leakage, an electrical warning, or a problem with the attachment circuit may require testing several connected systems before the actual cause is found. The Bobcat T35130SL Telescopic Handler PDF Repair and Service Manual, Publication No. 7268143enUS, provides model-specific workshop information for carrying out that work on the applicable machine serial range.

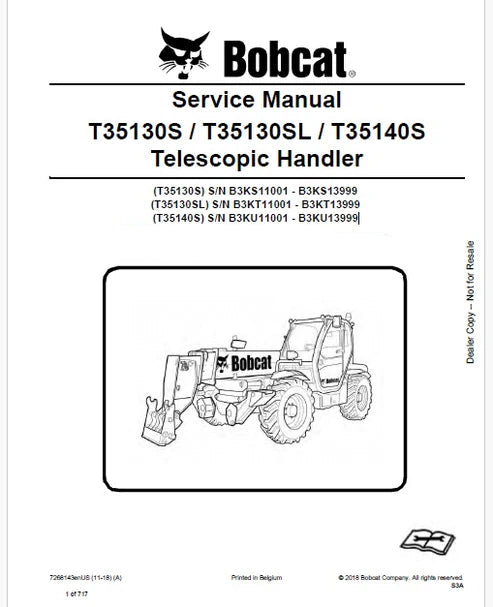

This publication covers the Bobcat T35130SL with S/N B3KT11001 through B3KT13999. Publication 7268143enUS is also used for the closely related T35130S and T35140S models in the same manual family. The identified edition is 11-18 (A), November 2018, printed in Belgium, and the indexed digital version contains 717 pages.
T35130SL Machine Identification
| Machine Detail | Specification |
|---|---|
| Manufacturer | Bobcat |
| Model | T35130SL |
| Machine Type | Telescopic Handler |
| Serial Number Coverage | B3KT11001 – B3KT13999 |
| Publication Number | 7268143enUS |
| Edition | 11-18 (A) |
| Publication Date | November 2018 |
| Language | English |
| Format | |
| Page Count | 717 pages |
| Manual Type | Service Manual |
Published T35130SL Performance Specifications
| Specification | T35130SL |
|---|---|
| Rated Capacity | 3,500 kg |
| Capacity at Maximum Height on Stabilizers | 3,500 kg |
| Capacity at Maximum Height on Tires | 2,500 kg |
| Capacity at Maximum Reach on Stabilizers | 1,300 kg |
| Capacity at Maximum Reach on Tires | 400 kg |
| Maximum Reach on Tires | 8,764 mm |
| Lifting Height on Stabilizers | 12,468 mm |
| Lifting Height on Tires | 11,746 mm |
| Unladen Weight | 8,830 kg |
| Standard Tire | 405/70-20 16PR |
| Drive System | Hydrostatic motor |
| Transmission | Hydrostatic with electronic regulation |
| Maximum Travel Speed | Up to 30 km/h, configuration dependent |
| Crowding Force | 12,300 daN |
The published T35130SL specification sheet identifies the machine as a 3,500 kg rated-capacity telescopic handler with a maximum lifting height of 12,468 mm on stabilizers and a maximum reach of 8,764 mm on tires. It also identifies the hydrostatic drive system and electronically regulated hydrostatic transmission.
What the 7268143 Service Manual Covers
The manual is arranged as a complete service reference rather than a basic operating guide. Its contents begin with safety and machine identification and then move through the major systems that technicians encounter during troubleshooting, component removal, inspection, repair, and reassembly.
| Service Area | Practical Coverage |
|---|---|
| Foreword & Safety | Safety instructions, fire prevention, serial-number information, machine identification and service precautions |
| Safety and Maintenance | Lifting and blocking, cab-related service, transportation and maintenance information |
| Hydraulic System | Hydraulic components, valves, cylinders, controls, testing and repair procedures |
| Hydrostatic System | Hydrostatic drive components, system operation, adjustment and service information |
| Drive System | Drivetrain components and related repair procedures |
| Main Frame | Structural frame and associated component service |
| Electrical System & Analysis | Electrical components, circuits, analysis and troubleshooting information |
| Engine Service | Engine-related service and component procedures |
| Specifications | Technical specifications and service reference information |
The manual family is documented as covering the T35130S, T35130SL and T35140S telescopic handlers, with the T35130SL serial range identified as B3KT11001-B3KT13999 for the 11-18 edition.
Hydraulic Troubleshooting for Boom and Attachment Functions
The hydraulic system is at the center of almost every working function on the T35130SL. The boom must raise and telescope smoothly, the attachment must respond correctly, and hydraulic functions need to remain predictable while the machine is carrying a load.
If the boom becomes slow, a cylinder develops a leak, an attachment function loses power, or a hydraulic function behaves differently once the system is hot, the hydraulic section provides a more appropriate starting point than simply replacing a valve or cylinder.
The manual's system-oriented service information can be used to work through hydraulic components, controls, cylinders, and related circuits during diagnosis and repair.
Hydrostatic Drive and Travel Service
The T35130SL uses a hydrostatic motor and electronically regulated hydrostatic transmission. This makes the hydrostatic system an important area when the handler develops travel-related symptoms.
- Uneven travel performance
- Weak movement under load
- Unexpected changes in travel response
- Hydrostatic drive problems
- Transmission-related service requirements
- Drive-system component removal and installation
The dedicated hydrostatic and drive-system sections allow a technician to investigate these complaints systematically rather than treating every travel problem as an engine fault.
Telescopic Boom and Load Handling
The T35130SL is designed around a long-reach telescopic boom. With a published lifting height of 12.468 m on stabilizers and maximum reach of 8.764 m on tires, boom-related components operate under significant mechanical and hydraulic loads.
When boom extension becomes irregular, the attachment does not respond correctly, or a cylinder requires service, the correct removal and installation procedure is important. The manual provides the technical reference needed to approach these repairs according to the machine's design rather than using a generic telehandler procedure.
Engine and Supporting Systems
Engine service is included as a dedicated section of the publication. This becomes useful when an engine-related symptom is affecting the handler's overall performance or when major engine-area components need to be removed to gain access to another system.
The service manual also brings engine-related work into the broader machine context, allowing technicians to distinguish between a genuine engine problem and a hydraulic, hydrostatic, electrical, or control-system issue that may produce a similar performance complaint.
Electrical System and Analysis
Electronic controls are particularly important on a telehandler using an electronically regulated hydrostatic transmission. An intermittent electrical connection, sensor fault, or control-circuit problem can therefore present itself as an operating issue rather than an obvious electrical failure.
The Electrical System & Analysis section provides a dedicated reference for tracing electrical problems, examining affected circuits, and working through machine-control symptoms before replacing expensive electronic components.
Maintenance, Safety and Component Access
Repair work on a telescopic handler requires careful attention to machine stability and component support. The manual's safety and maintenance information includes procedures and precautions related to lifting and blocking the telescopic handler, operator-cab service, transportation, and maintenance.
This information is especially relevant before working around the boom, chassis, hydraulic components, or other assemblies where an unsupported machine or raised component can create a serious service hazard.
Useful Repair Situations for the T35130SL
- Boom movement becomes slow: Use the hydraulic-system information to investigate the circuit and components responsible for the affected function.
- Telescopic extension behaves irregularly: Check the hydraulic and boom-related service information before replacing components.
- Travel performance drops: Work through the hydrostatic and drive-system sections to identify whether the problem is hydraulic, mechanical, or control-related.
- The machine behaves differently when hot: System-specific service information can help separate temperature-related hydraulic or hydrostatic symptoms from other faults.
- An electrical warning appears: Use the Electrical System & Analysis section to trace the affected circuit or component.
- A hydraulic cylinder needs rebuilding: The hydraulic section provides the relevant component-service reference.
- A major component needs removal: The system-by-system organization helps identify associated components and access requirements before disassembly.
- The handler must be supported for service: Follow the applicable lifting and blocking information before beginning work.
Why Serial Number Verification Matters
Bobcat service publications can change as production configurations change. For this reason, the B3KT11001-B3KT13999 range is important when selecting this particular 7268143 edition.
There is also an earlier 7268143enUS (06-15) edition covering the T35130SL from B3KT11001 and above, while the later 11-18 (A) edition specifically identifies B3KT11001-B3KT13999. These should not automatically be treated as interchangeable publications.
Digital Manual Features
- Language: English
- Format: PDF
- Pages: 717 in the identified 11-18 edition
- Searchable technical information
- Bookmarks and organized navigation
- Detailed service illustrations
- Hydraulic-system information
- Electrical troubleshooting information
- Zoom in/out for diagrams and component details
- Printable pages for workshop reference
- Convenient digital access on compatible computers, tablets, and mobile devices
Frequently Asked Questions
What is Bobcat publication 7268143enUS?
7268143enUS is a Bobcat Service Manual publication for the T35130S, T35130SL, and T35140S telescopic handler family. The 11-18 (A) edition provides service information for the applicable 2018 production range.
What serial numbers does the T35130SL manual cover?
The 11-18 (A) edition covers the T35130SL S/N B3KT11001 through B3KT13999.
Does the manual cover the hydraulic system?
Yes. Hydraulic System is one of the major technical sections and provides service information for hydraulic components and machine functions.
Does 7268143 cover the hydrostatic transmission?
Yes. A dedicated Hydrostatic System section covers the hydrostatic drive, while the Drive System section provides additional drivetrain-related service information.
Does the manual cover electrical troubleshooting?
Yes. The manual includes an Electrical System & Analysis section for electrical diagnosis and service.
Does this manual cover the T35130SL telescopic boom?
Yes. The service information is designed around the complete telescopic handler, including hydraulic and structural systems associated with boom and load-handling functions.
How many pages are in the Bobcat 7268143 manual?
The identified November 2018 edition contains 717 pages.
Is 7268143 the same for all T35130SL production years?
No. Publication 7268143 exists in different editions. The 11-18 (A) edition is identified for T35130SL S/N B3KT11001-B3KT13999, while an earlier 06-15 edition is listed for B3KT11001 and above. Verify the publication edition against the machine serial number before using it.
Is this a repair and service manual rather than an operation manual?
Yes. It is a service manual intended for workshop-level maintenance, troubleshooting, component service, repair, and related technical procedures rather than simply operating the telescopic handler.
