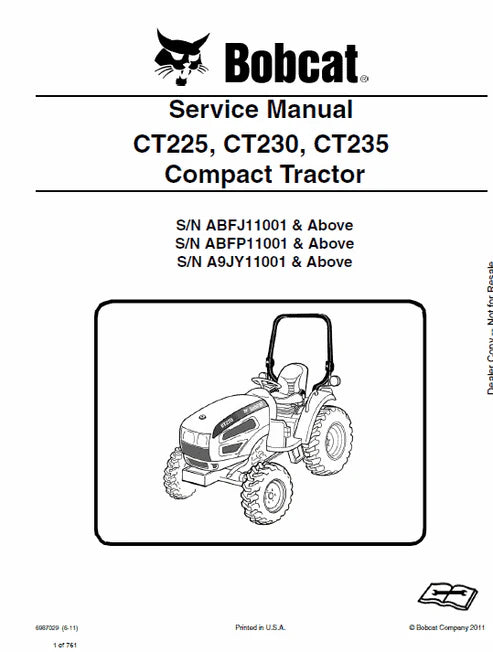

Bobcat CT225, CT230, CT235 Compact Tractor Pdf Repair and Service Manual

Bobcat CT225, CT230 & CT235 Compact Tractor PDF Repair and Service Manual

Compact tractors are expected to perform hundreds of different jobs throughout their service life, but very few models successfully balance power, precision and ease of operation like the Bobcat CT225, CT230 and CT235. Developed for small farms, equestrian properties, vineyards, municipalities and landscape contractors, this tractor family was designed around one objective: delivering the versatility of a utility tractor in a compact platform capable of working where larger agricultural machines cannot.

Rather than simply increasing engine horsepower between models, Bobcat engineered the CT225, CT230 and CT235 series to provide operators with greater hydraulic capability, smoother hydrostatic operation and dependable PTO performance for year-round productivity. From loading gravel and moving hay bales to rotary mowing, grading roads, cultivating gardens and operating post-hole diggers, these tractors transition quickly between attachments while maintaining excellent traction and precise ground speed. Their compact wheelbase, four-wheel-drive system and responsive power steering make them equally effective inside barns, orchards, residential developments and confined construction sites where maneuverability is just as important as lifting performance.

Machines in this class often accumulate thousands of operating hours performing repetitive loader work and constant direction changes. Over time, hydrostatic transmission components, front axle differentials, steering cylinders, hydraulic pumps, three-point hitch assemblies, PTO mechanisms and electrical circuits begin to show wear. Accurate diagnosis requires systematic testing instead of replacing expensive components unnecessarily. The official Bobcat Service Manual provides dealership-level repair procedures, guiding technicians through inspection, hydraulic pressure testing, electrical troubleshooting, dimensional checks and complete component rebuilding using factory specifications.

Engineered for Versatility Instead of Single-Purpose Work

Unlike larger agricultural tractors optimized for heavy field cultivation, the CT225, CT230 and CT235 were created as true multi-purpose machines. Their hydrostatic transmission allows smooth speed adjustments without clutching, making loader operations faster and reducing operator fatigue during repetitive tasks. The independent rear PTO and Category I three-point hitch support a wide range of implements, allowing one tractor to replace several dedicated machines throughout the year.

Machine Information

Why Professionals Choose the OEM Service Manual

This is not a simplified maintenance booklet. It is the same factory workshop manual prepared for Bobcat dealership technicians. Every repair begins with diagnosis before disassembly. For example, reduced loader lifting capacity is traced through hydraulic flow and pressure tests before the pump is removed. Hydrostatic travel complaints are diagnosed through linkage adjustment, charge pressure verification and transmission testing rather than replacing assemblies based on symptoms alone. The manual also provides electrical troubleshooting using complete wiring diagrams and connector identification, allowing faults in charging, starting and safety circuits to be located quickly and accurately.

Factory Workshop Coverage

• Complete engine teardown, inspection and rebuilding
• Cylinder head service and valve train adjustments
• Fuel injection system diagnosis
• Cooling system pressure testing and repair
• Hydrostatic transmission inspection and servicing
• Front axle differential overhaul
• Final drive inspection and repair
• Hydraulic pump testing and performance analysis
• Main hydraulic control valve servicing
• Loader hydraulic troubleshooting
• Power steering system diagnosis and repair
• Three-point hitch adjustments and hydraulic calibration
• PTO clutch inspection and servicing
• Brake system adjustment and overhaul
• Electrical wiring diagrams with connector locations
• Charging, starting and safety switch diagnostics
• Instrument panel and electrical component testing
• Torque specifications, wear limits and inspection procedures
• Complete disassembly, reassembly and operational testing

Manual Technical Information

Frequently Asked Questions

Which tractor models are covered by this manual?
This factory service manual covers the Bobcat CT225, CT230 and CT235 compact utility tractors.

Does it include complete hydraulic and electrical diagnostics?
Yes. The manual contains hydraulic schematics, electrical wiring diagrams, troubleshooting procedures, pressure testing instructions and factory diagnostic information.

Can this manual be used for complete tractor rebuilding?
Yes. It includes engine overhaul, hydrostatic transmission servicing, front axle repairs, hydraulic system rebuilding, PTO servicing, steering repairs, brake adjustments and complete reassembly procedures.

Who is this manual intended for?
It is suitable for professional mechanics, Bobcat dealers, farm workshops, equipment rental fleets and owners who want OEM repair procedures for maintaining or restoring their CT225, CT230 or CT235 tractor.
