Bobcat CT122 Compact Tractor PDF Repair & Service Manual (S/N ABF511001 & Above)

Compact tractors in the 20–25 horsepower class are often expected to do the work of much larger machines. The Bobcat CT122 was engineered for owners who needed a versatile tractor capable of loader operations, finish mowing, rotary tilling, grading driveways and maintaining small farms throughout the year. Rather than maximizing horsepower alone, Bobcat designed the CT122 around ease of operation, precise hydrostatic control and dependable hydraulic performance, making it especially effective for first-time tractor owners, landscapers and acreage managers who frequently switch between PTO implements and front-end loader attachments. The tractor's compact footprint allows it to work in orchards, barns and residential properties where larger utility tractors simply cannot maneuver.

What separates the CT122 from many tractors in its class is the balance between operator comfort and mechanical simplicity. A hydrostatic transmission provides smooth speed control without clutching, while four-wheel drive, power steering and a Category I three-point hitch give the machine enough capability to handle demanding daily tasks. After years of loader work, repetitive forward-reverse cycles and PTO operation, wear commonly develops in the hydrostatic drive, front axle gears, steering linkage, hydraulic pump, lift cylinders and three-point hitch components. The OEM Bobcat Service Manual is written to diagnose these systems methodically through pressure testing, dimensional inspection and electrical analysis before parts are replaced, helping technicians restore the tractor to factory specifications. It applies specifically to serial numbers ABF511001 & Above.

Machine Information

How the Factory Manual Approaches Repairs

Instead of instructing mechanics to replace assemblies, the Bobcat workshop manual explains how to identify the root cause of a fault. Reduced loader lifting performance is traced through hydraulic pressure testing, steering concerns are verified by inspecting the hydraulic steering circuit and front axle, while poor travel performance is diagnosed through hydrostatic linkage adjustments and transmission testing. Electrical troubleshooting follows complete wiring diagrams to isolate charging, starting and safety interlock faults before unnecessary components are replaced. Workshop Procedures Included

• Complete engine inspection, disassembly and overhaul
• Hydrostatic transmission diagnosis and servicing
• Front drive axle differential rebuilding
• Final drive inspection and repair

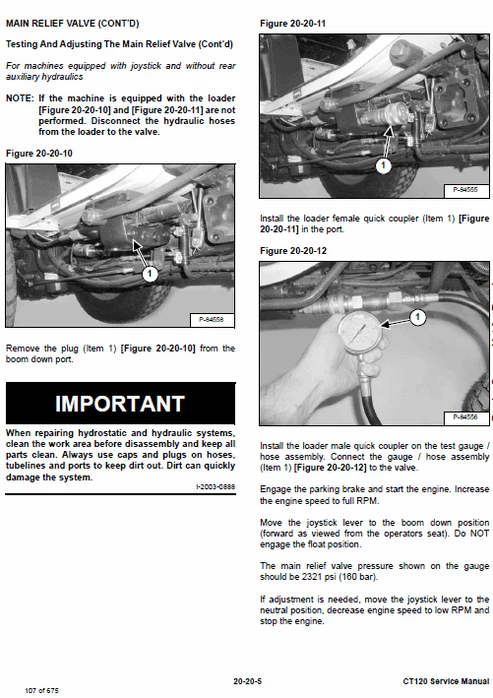

• Hydraulic pump flow and pressure testing
• Loader hydraulic valve diagnosis
• Three-point hitch lift system adjustments
• PTO clutch inspection and repair procedures
• Power steering troubleshooting and cylinder servicing
• Brake system inspection and adjustment
• Cooling system testing and component replacement
• Fuel system servicing and bleeding procedures
• Electrical wiring diagrams with circuit analysis
• Charging and starting system diagnostics
• Safety switch troubleshooting
• Main frame and chassis service procedures
• Torque specifications, wear limits and inspection standards
• Step-by-step reassembly and post-repair testing

Manual Technical Information

Frequently Asked Questions

Is this manual specific to certain serial numbers?
Yes. This OEM factory manual is written for Bobcat CT122 compact tractors with serial numbers ABF511001 & Above.

Does it include hydrostatic transmission diagnostics?
Yes. The manual contains testing, adjustment and repair procedures for the hydrostatic transmission, along with hydraulic and electrical diagnostics

Is it suitable for complete tractor rebuilding?
Yes. It covers the engine, front axle, hydraulic system, steering, PTO, electrical system, chassis and other major serviceable components using OEM workshop procedures.
